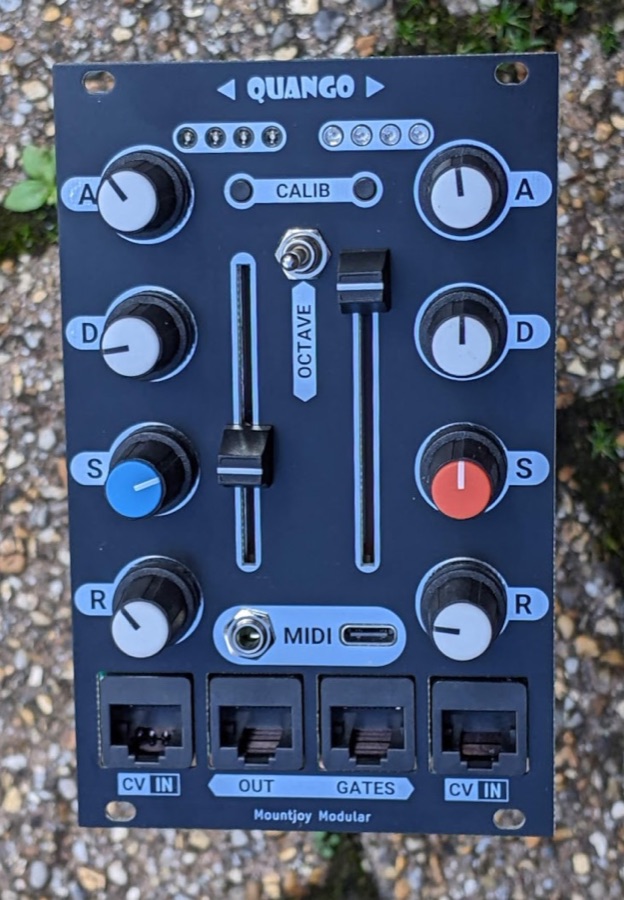

Quango

Maker	Mountjoy Modular
Type	Polyphonic MIDI interface with eight envelopes and quad VCAs on two channels
Mounting	SMD
Width	16 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Drives two four voice VCOs over RJ-45, sends pitch from an AD5676 16 bit DAC and shapes the returned audio with AS3364 VCAs. Includes a pitch detection loop for auto calibrating each voice.

Documentation

• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
