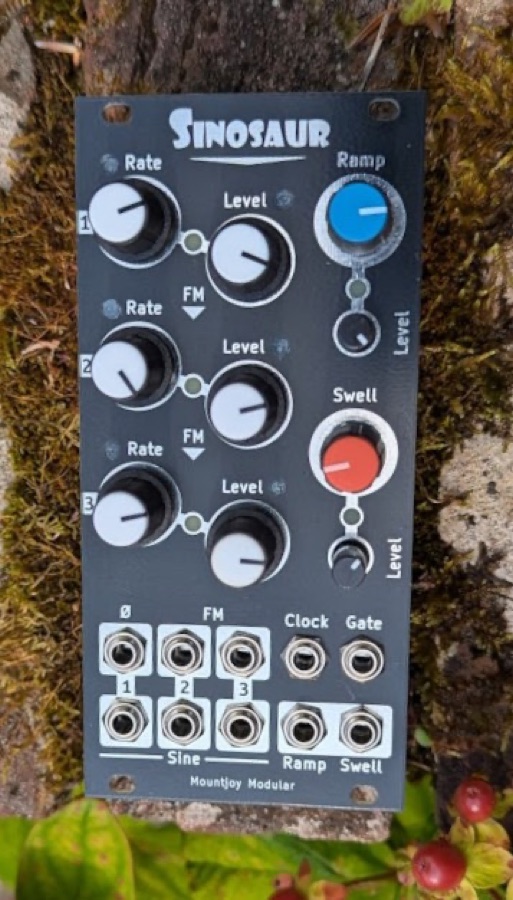

Sinosaur

Maker	Mountjoy Modular
Type	Three sine LFOs with ramp and swell envelopes and clock sync
Mounting	SMD
Width	12 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Clicking a rate or level pot assigns the ramp or swell envelope to that control. Sines 2 and 3 have an FM output derived from the preceding sine, and a clock input locks rates to multiples of the incoming clock.
