Spectralist

Maker	Mountjoy Modular
Type	Additive oscillator with up to 300 harmonics split across odd and even outputs
Mounting	SMD
Width	12 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

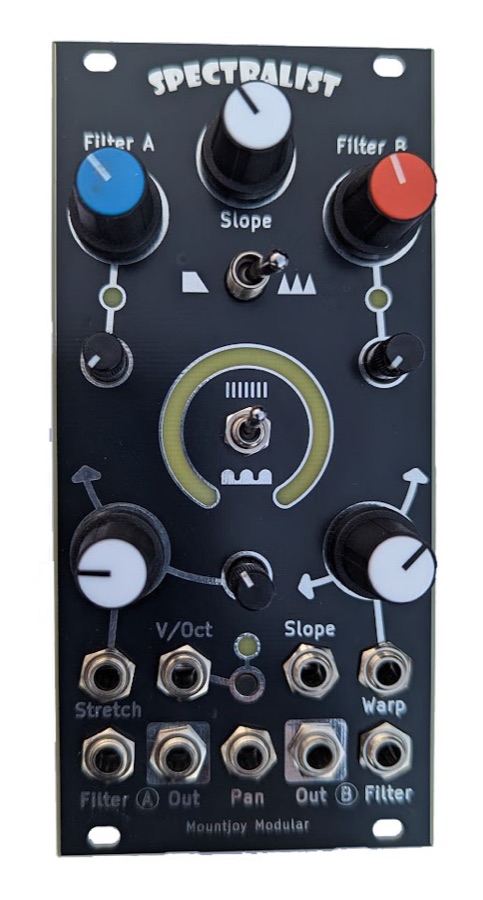

STM32H723 at 400MHz feeding a PCM5100A DAC. Spread and warp controls space or bunch the harmonics, and a filter section works as either a variable slope low pass or a comb. A ring of LEDs shows the harmonic spread.
