| Maker | Polykit |
|---|---|
| Type | Linear Eurorack power supply giving +12V, -12V and +5V from an AC wall wart |
| Mounting | Through-hole |
| Width | — |
| License | Proprietary (No licence published) |
| Difficulty | 🌡️ Medium through-hole |

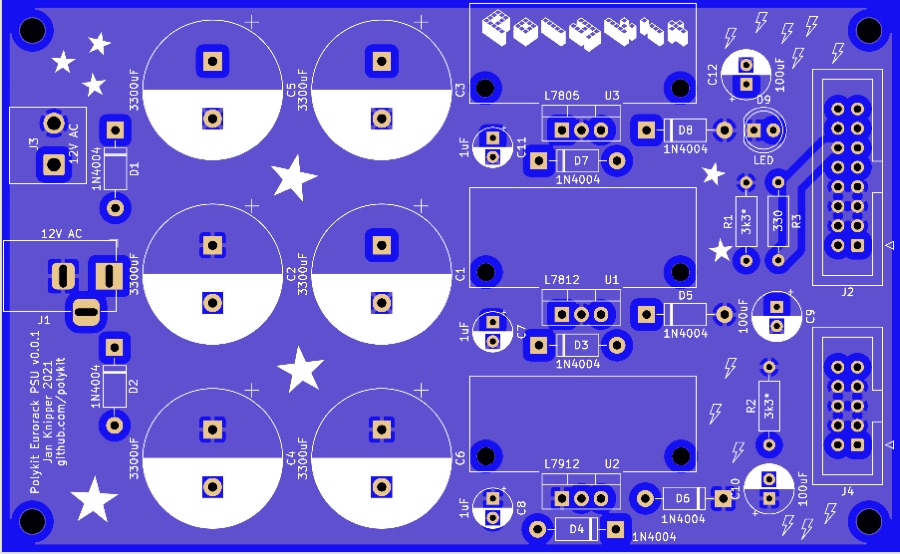

Needs a 12V AC to AC 1A to 2A wall wart. All through hole with L7812, L7912 and L7805 regulators and 3300uF filter caps. The BOM is a table in the README and the gerbers are in the plots directory.
Documentation
Links
This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
