Oscillator Carrier Board

Maker	Jordan Aceto
Type	Eurorack VCO host board that accepts swappable oscillator plug-in PCBs
Mounting	Through-hole
Width	14 HP
License	Open source (CC BY 4.0 on the design files)
Difficulty	🧊 Low-count through-hole

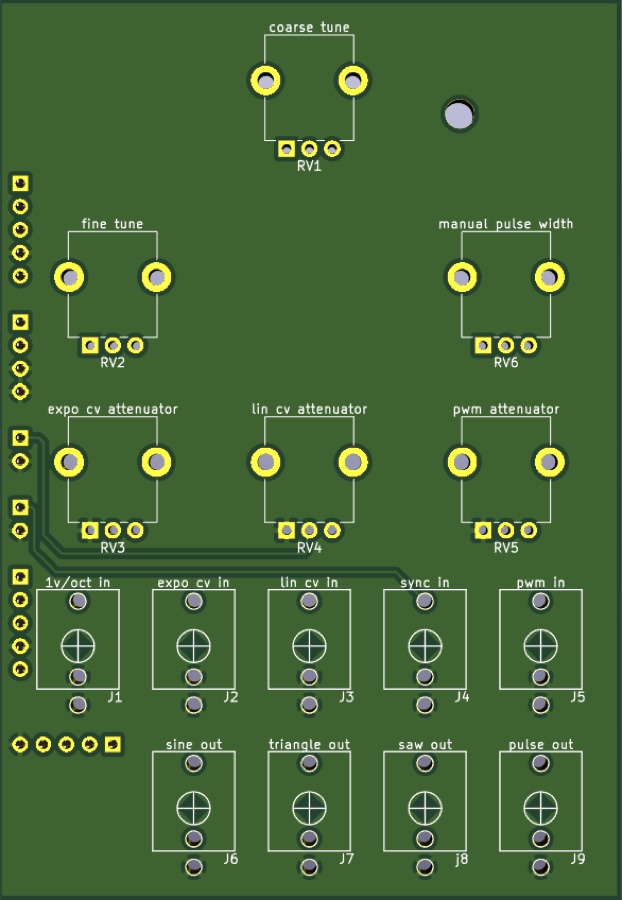

Carrier board carrying only jacks and pots, so the soldering is easy, but you also need one of the maker's VCO plug-in boards such as the CEM3340 VCO. No gerbers are published and the README lists it as not yet built and tested.
