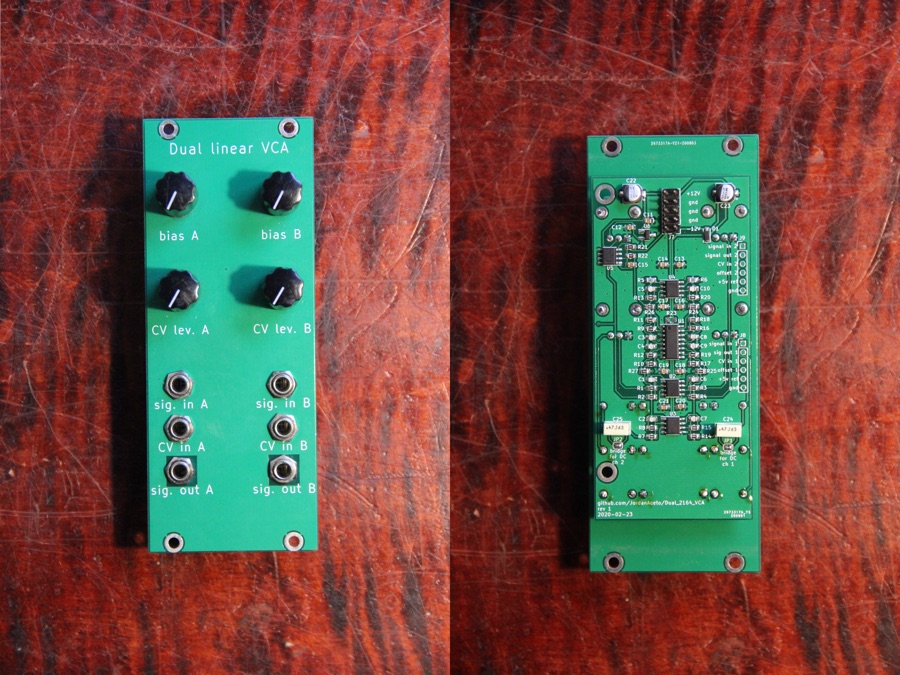

Dual 2164 VCA

Maker	Jordan Aceto
Type	Two independent linear VCAs with manual offsets and attenuated CV
Mounting	Mixed
Width	10 HP
License	Open source (CC BY 4.0 on the design files)
Difficulty	🔥 SMD (0805)

Unity gain at +5V CV, with AC or DC coupling set by a solder jumper. Gerbers are only supplied for the 10hp PCB front panel, not for the main board, so you have to plot the main board yourself from the KiCad files.

Documentation

• Bill of materials (BOM)
• Schematic

Links

• Source / files on GitHub
• Maker page

More from Jordan Aceto

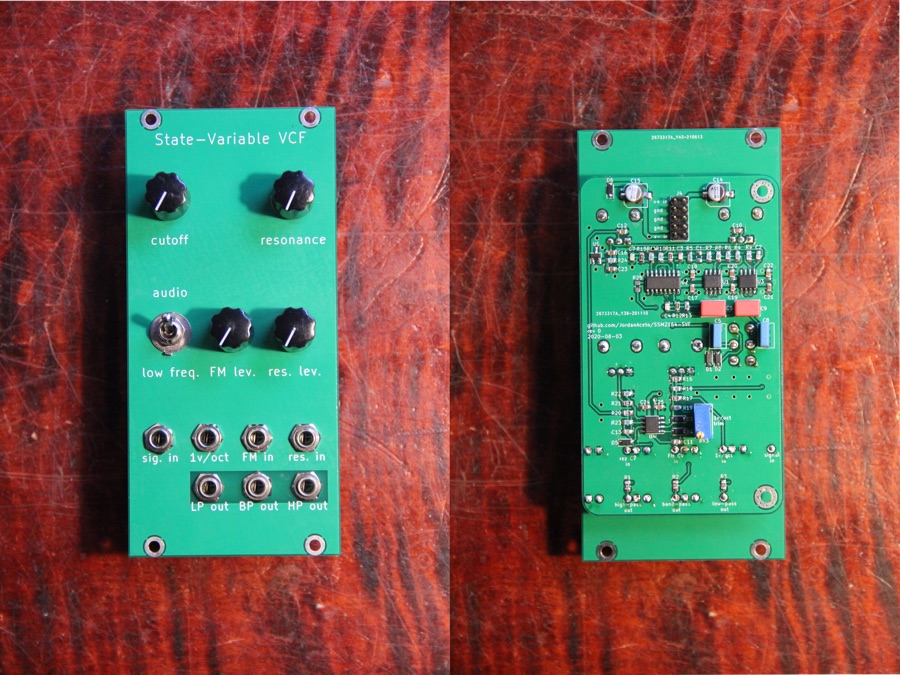

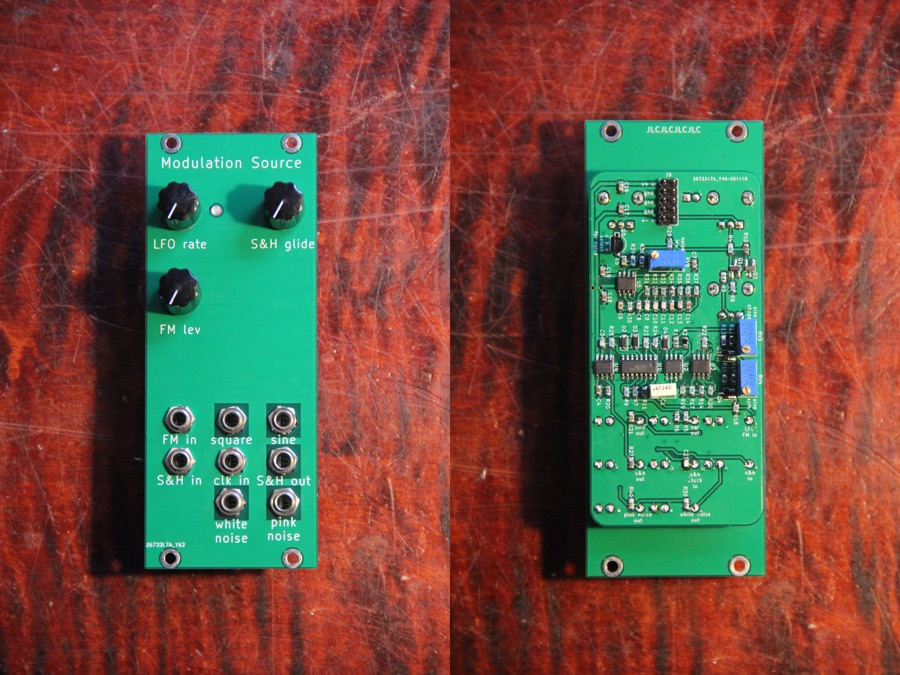

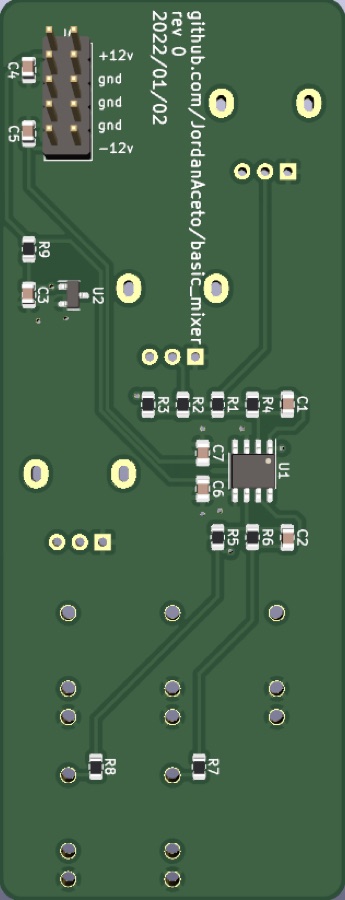

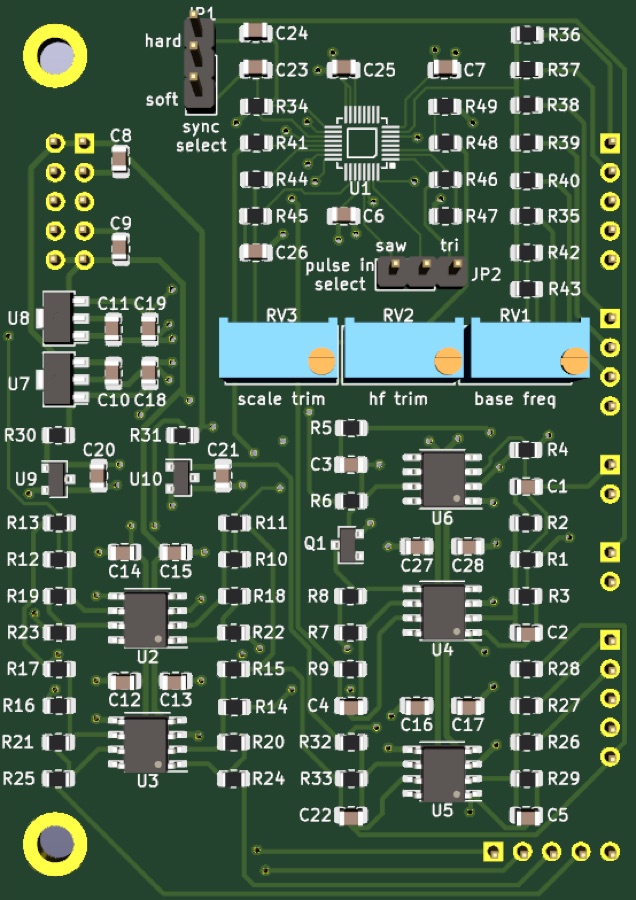

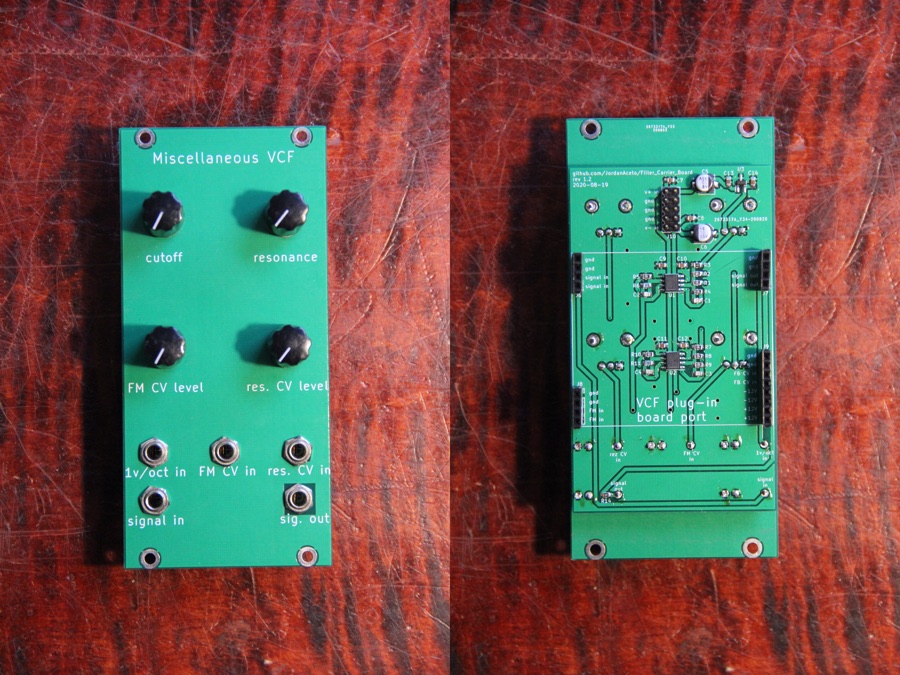

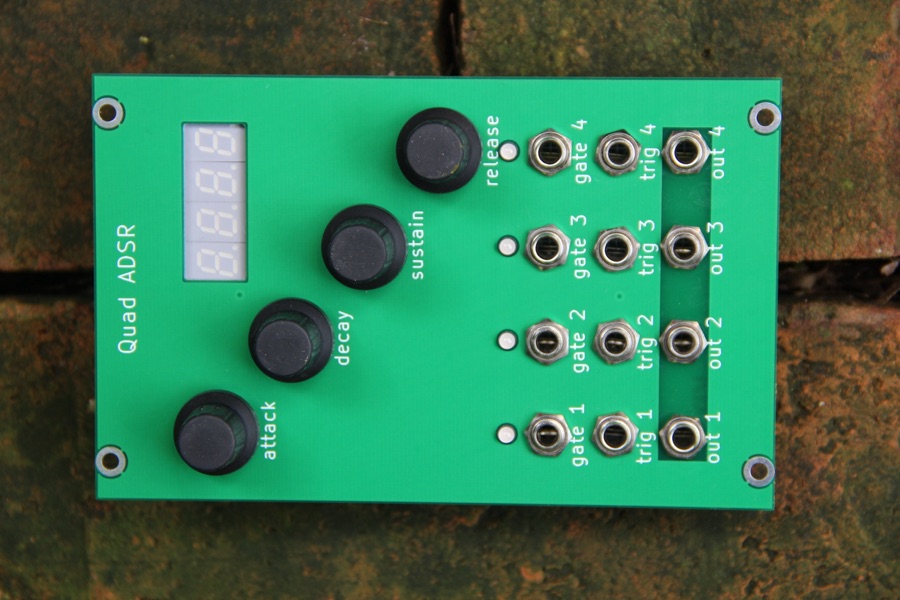

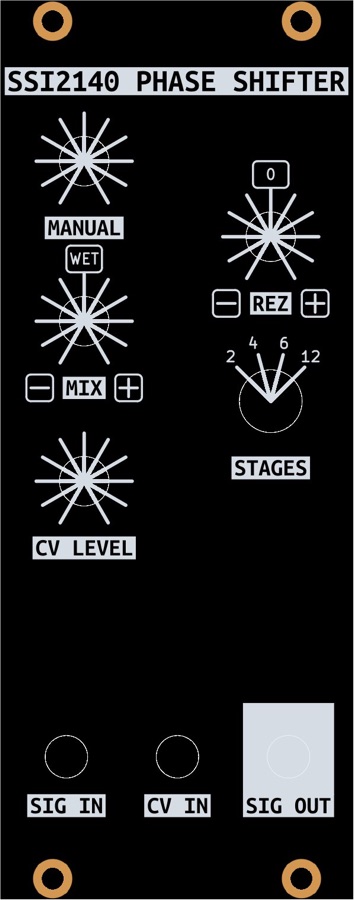

CEM3340 VCO Analog VCO core board with simultaneous sine, triangle, saw and pulse SSI2130 VCO Through-zero FM analog VCO core built on the SSI2130 SSI2140 12 Stage Phase Shifter Twelve stage analog phaser with selectable stage count and bipolar feedback SSM2164 SVF State variable VCF with an audio range and a super low frequency LFO mode Modulation Source Voltage controlled LFO with white and pink noise and sample and hold Quad ADSR Four digital ADSR envelopes with encoders and a seven segment display Basic Mixer Three channel DC coupled mixer with normal and inverted outputs Filter Carrier Board Eurorack VCF host board that accepts swappable filter core plug-in PCBs

More vca modules

Streams Mutable Instruments Blinds Mutable Instruments Veils Mutable Instruments Dual VCA diysynth VCAs Super Synthesis TVCA Super Synthesis Segue Nonlinear Circuits EDU VCA Erica Synths

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
