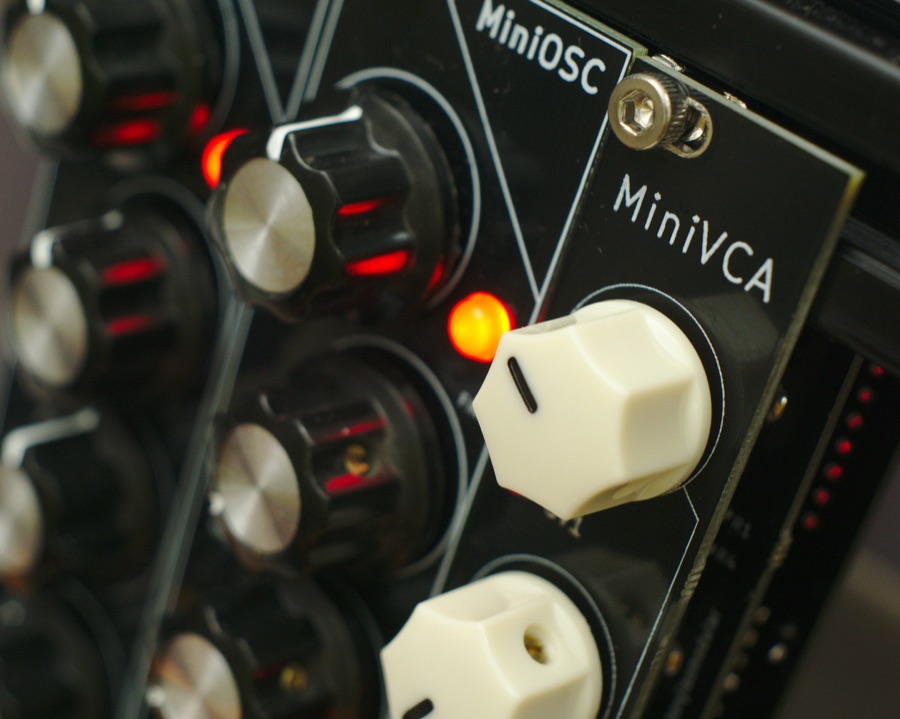

MiniVCA

Maker	Benjiao Modular
Type	LM13700 VCA
Mounting	Through-hole
Width	—
License	Open source (MIT over a hardware-only repo)
Difficulty	🌡️ Medium through-hole

Clone of Based on Juanito Moore's LM13700 VCA design. v1.0 uses a 10.16mm socket for the LM13700 instead of 7.62mm, which builders worked around by bending the pins. v1.2 moves to Doepfer mounting hole spacing.

Documentation

• Assembly instructions
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from Benjiao Modular

DaisyVerb Reverb module built around the Daisy Seed GranulArduino Granular synthesizer voice on an Arduino Hackable Delay PT2399 delay laid out for circuit bending and modification Kwantizer Arduino CV quantizer with DIP switch note selection MiniADSR Four parameter envelope generator in 4HP MiniAttenuMix DC coupled CV mixer with attenuverted inputs MiniBurst Analog burst generator MiniDelay Three knob PT2399 delay

More vca modules

Streams Mutable Instruments Blinds Mutable Instruments Veils Mutable Instruments Dual VCA diysynth VCAs Super Synthesis TVCA Super Synthesis Segue Nonlinear Circuits EDU VCA Erica Synths

This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
