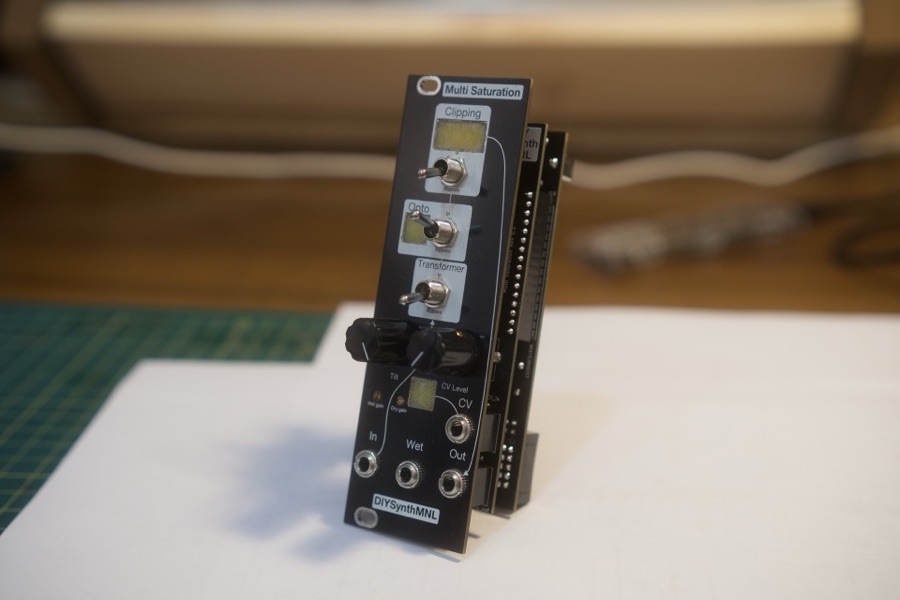

Multi Saturation Module

Maker	DIY Synth Manila
Type	Multi stage saturation with a voltage controlled wet and dry mix
Mounting	Through-hole
Width	—
License	Open source (GPL-3.0 over a hardware-only repo)
Difficulty	🌶️ Large through-hole

The only repo in this account with a GPL licence file and the only one with no README, so the GPL text is the sole statement of terms. Includes a FreeCAD 3D model and DXF and SVG front panel artwork.

Documentation

• Bill of materials (BOM)
• Schematic

Links

• Source / files on GitHub
• Maker page

More from DIY Synth Manila

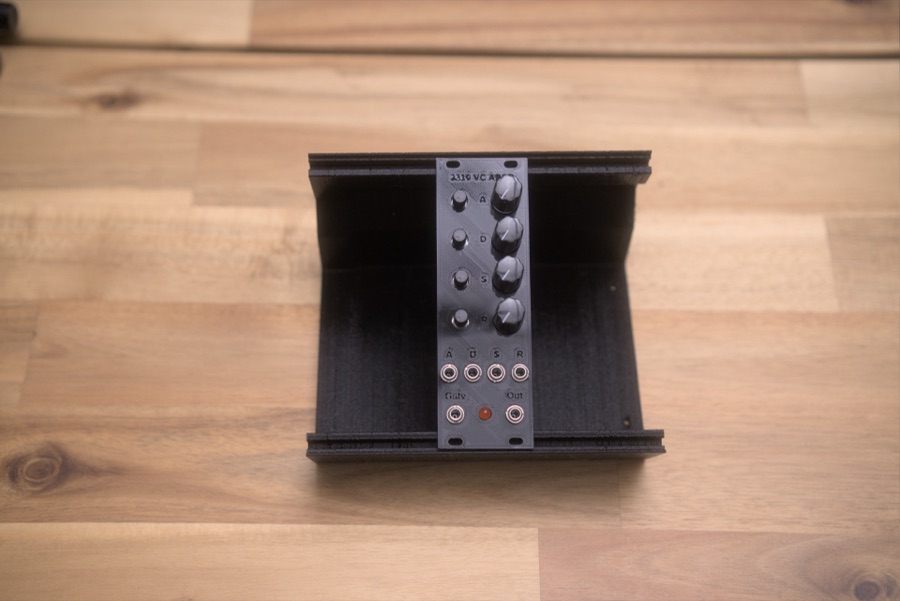

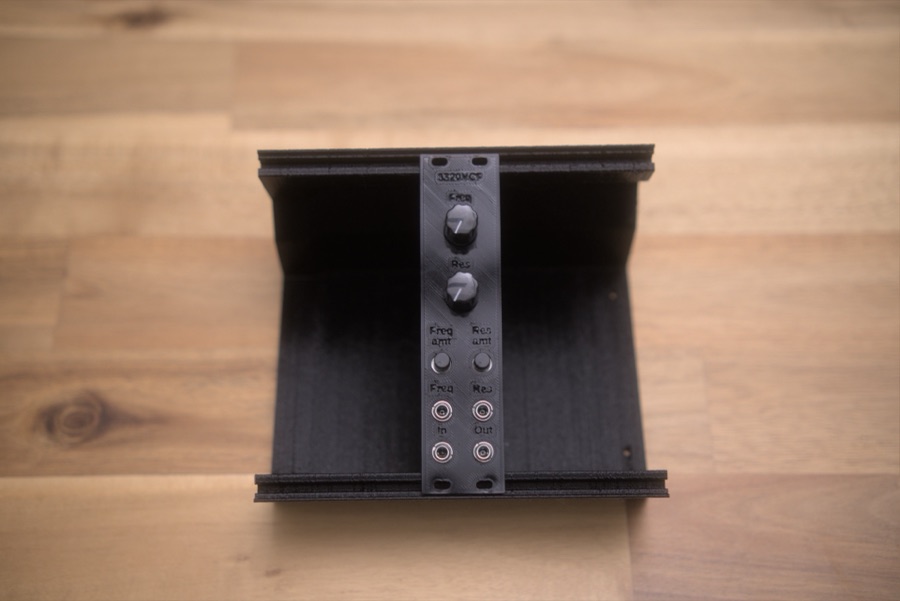

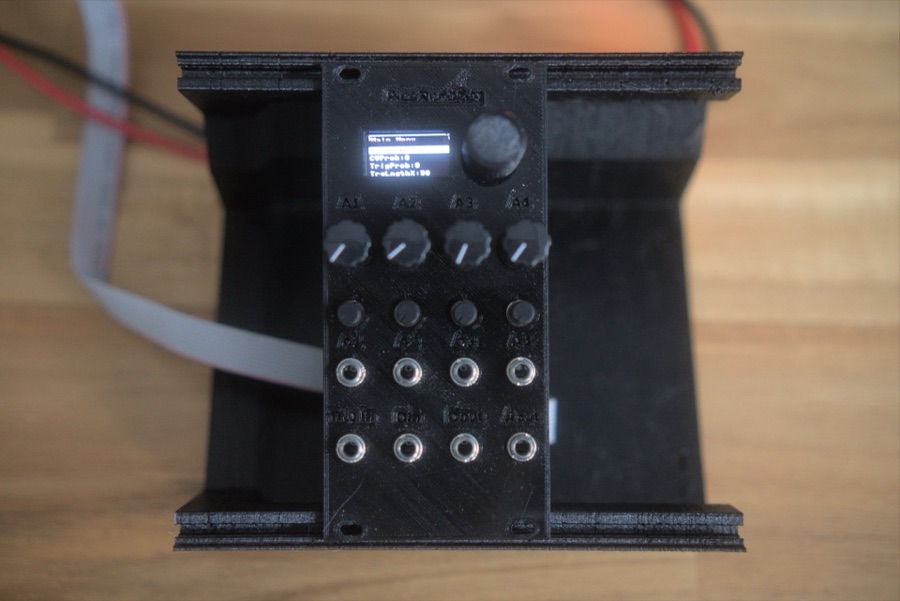

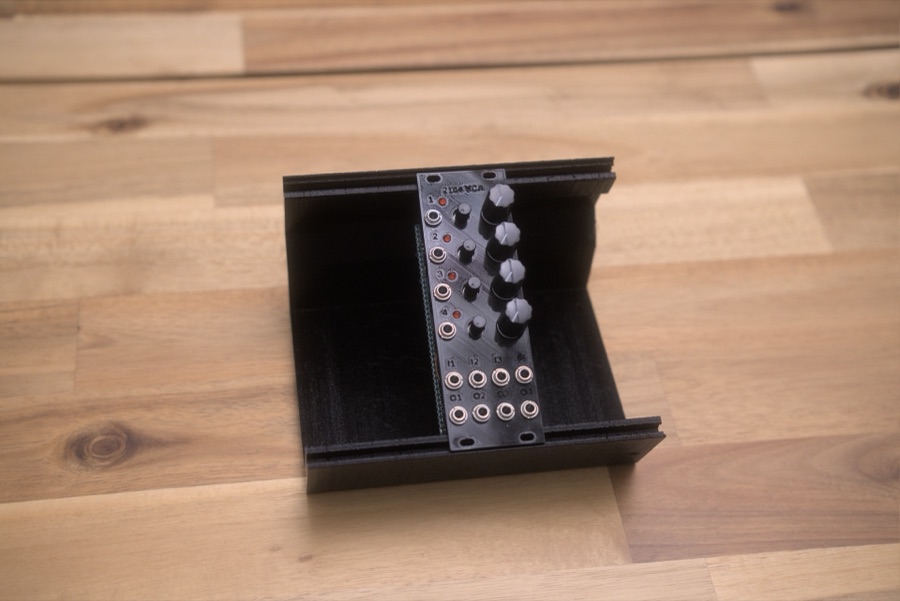

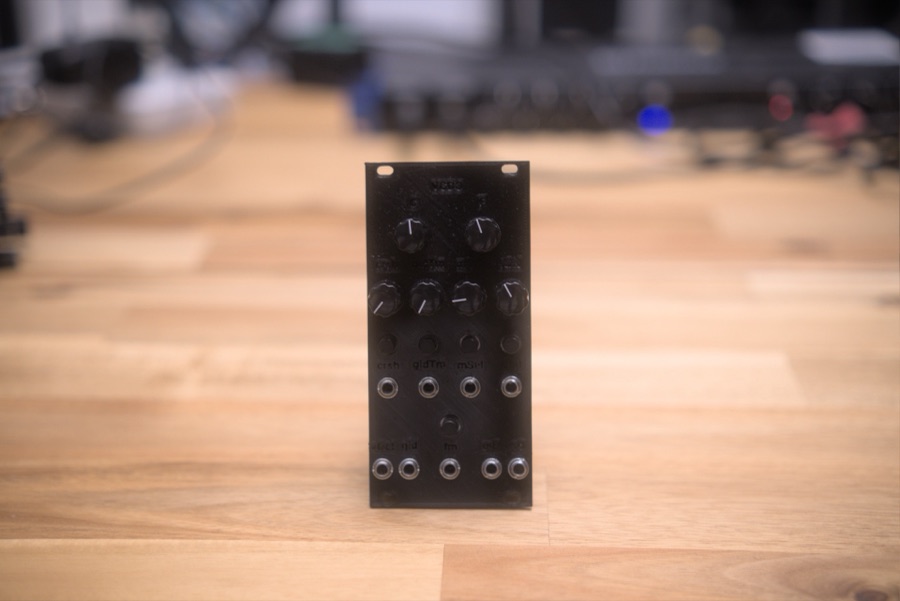

2164 Quad Exponential VCA Quad exponential VCA on the AS2164 with normalled signal and CV chains and a mix output 3310 ADSR Voltage controlled ADSR on the AS3310 with a CV input and attenuator on every stage 3320 VCF Four pole low pass filter on the AS3320 with voltage controlled resonance 3330 Dual Lin/Exp VCA Dual VCA on the AS3330 with a knob that blends between linear and exponential response 3340 VCO Analog VCO on the AS3340 with saw, triangle, sine and pulse outputs Electric Druid VCDO1 Wavetable oscillator around the Electric Druid VCDO1 chip, with main and sub outputs PT2399 Delay Lo-fi PT2399 delay with voltage controlled time and a feedback overdrive jumper Pi Pico Random Looping Sequencer Raspberry Pi Pico sequencer with quantised random CV and probability driven mutation
