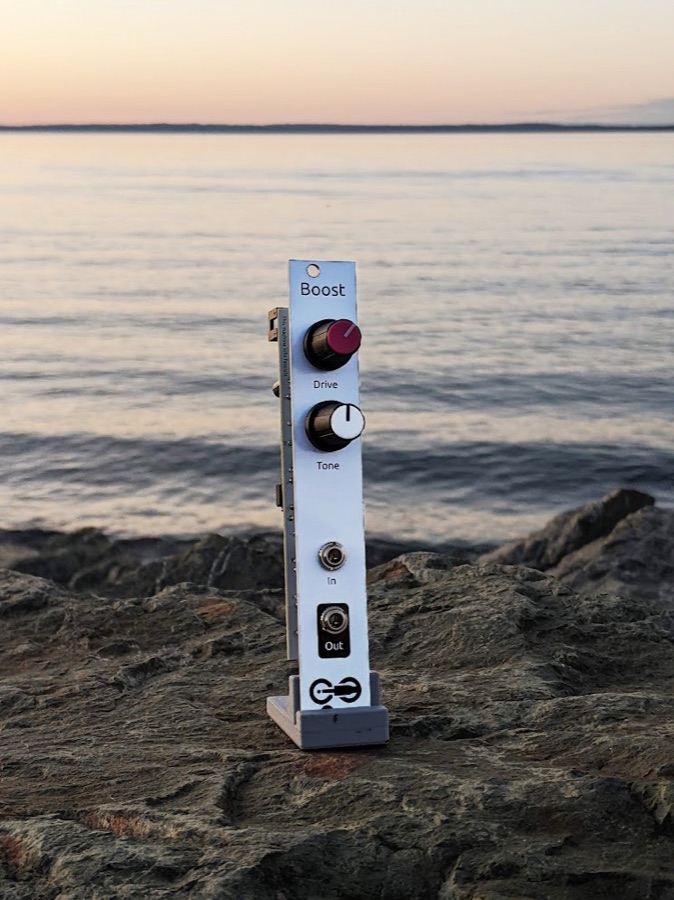

Boost

Maker	Freemodular
Type	Overdrive preamp with 26 dB of gain, diode clipping and tone control
Mounting	Through-hole
Width	4 HP
License	Open source (Hardware CC BY-SA 4.0, software GPL-3.0)
Difficulty	🌡️ Medium through-hole

Brings line level or microphone signals up to Eurorack level, or drives Eurorack audio into distortion.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
