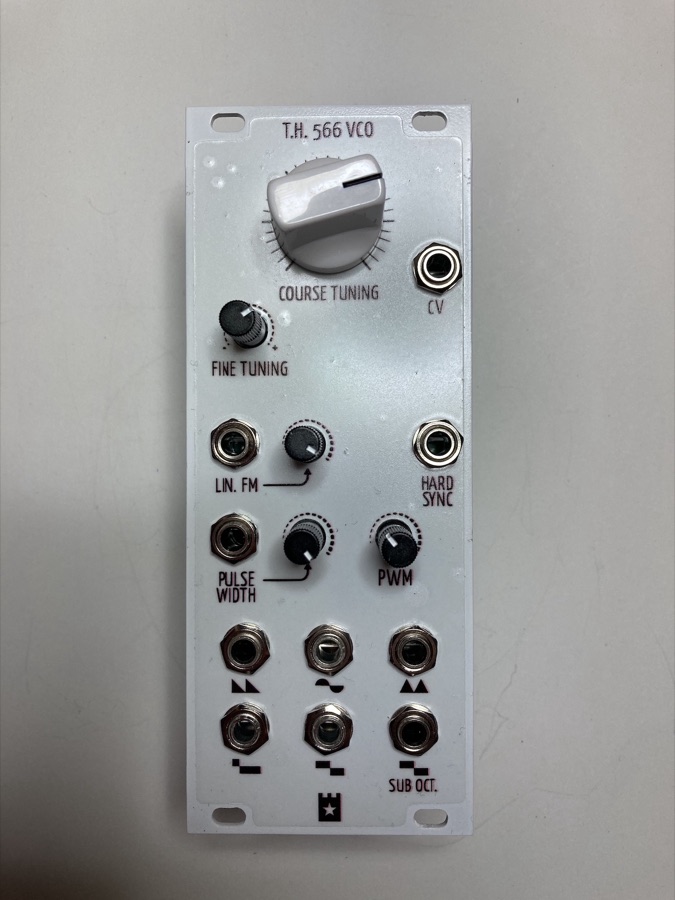

Thomas Henry 566 VCO

Maker	Gerbster
Type	VCO built around a 566 function generator, with a saw shaper added
Mounting	Through-hole
Width	—
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Clone of Thomas Henry 566 VCO. Drawn from Thomas Henry's booklet Making Music with the 566. A wave shaper turns the triangle into a saw.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
