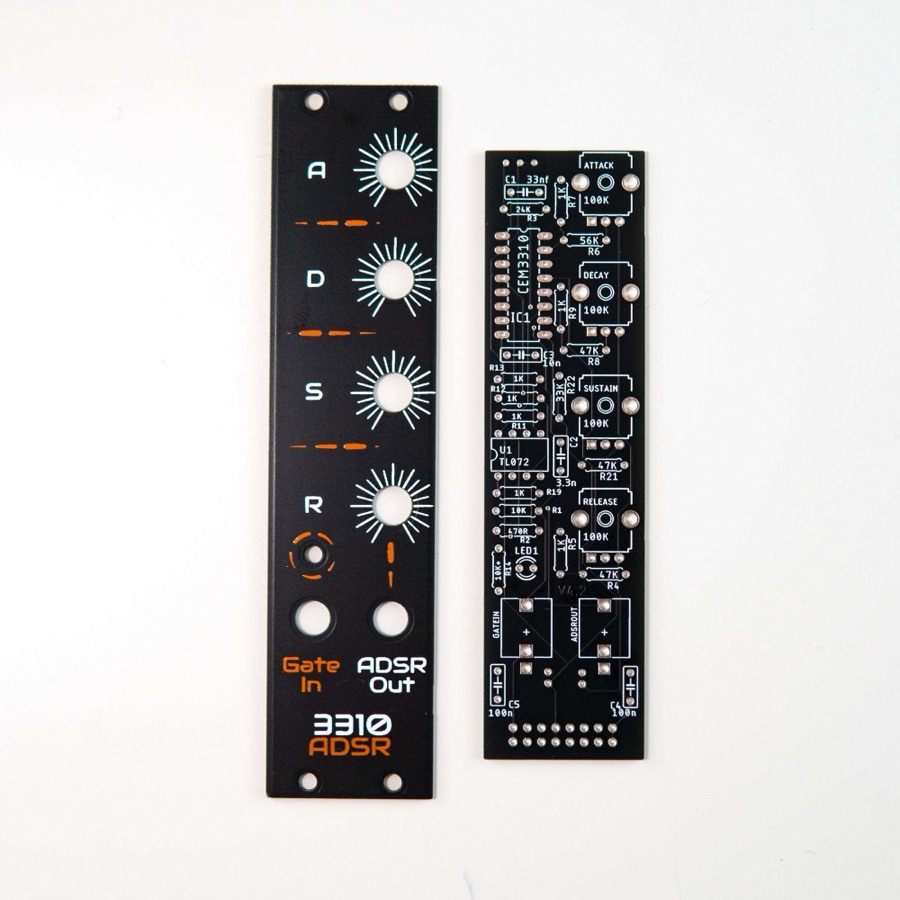

3310 ADSR

Maker	Guru Gara Synth
Type	ADSR envelope on the CEM3310 or AS3310
Mounting	Through-hole
Width	6 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Plain ADSR with no CV over the stages. A separate module info PDF is also linked from the product page.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
