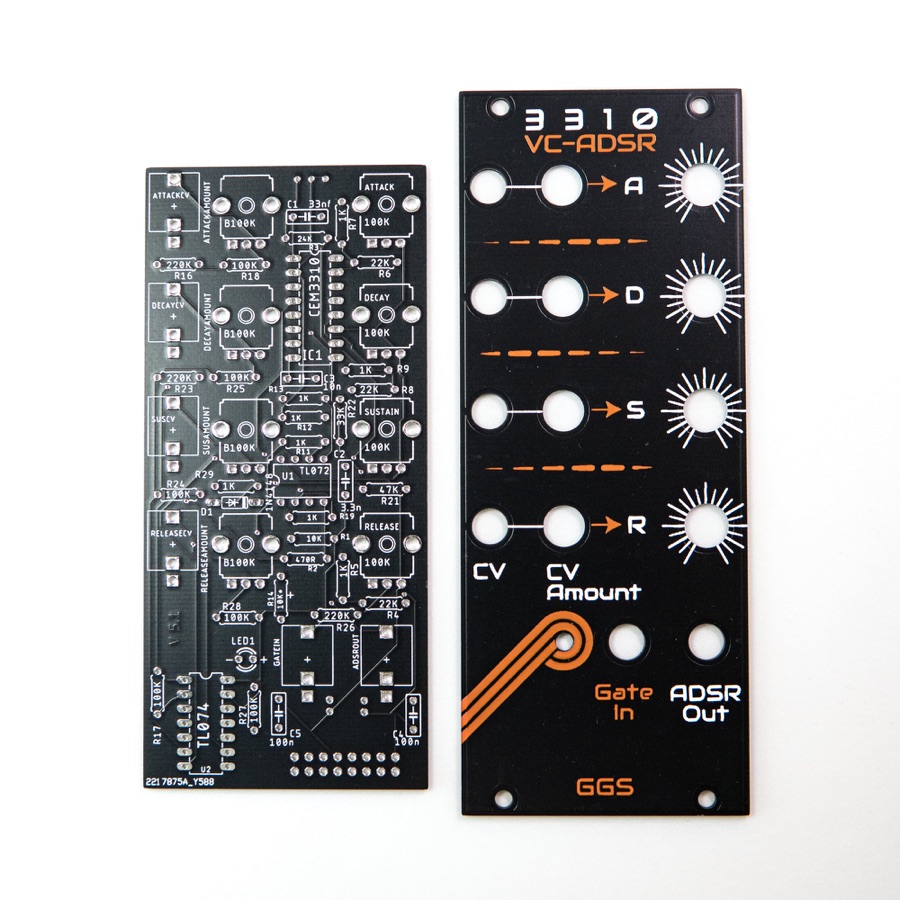

3310 VC-ADSR

Maker	Guru Gara Synth
Type	CEM3310 or AS3310 ADSR with CV over the stages
Mounting	Through-hole
Width	10 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

The 10HP version of the 3310 envelope, with CV inputs on the envelope stages.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
