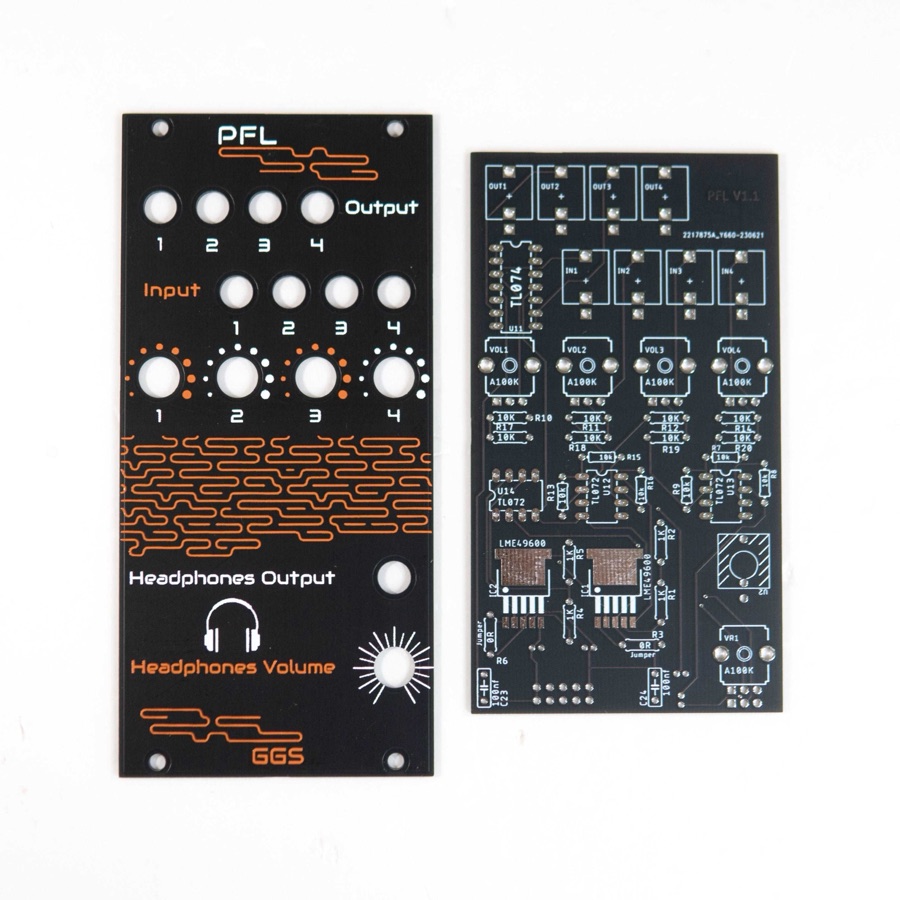

PFL

Maker	Guru Gara Synth
Type	Pre fader listen monitoring for four mixer channels
Mounting	Through-hole
Width	12 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

Sits on the insert points of a mixer so you can cue channels without touching the main mix. No build document is published for this one.

Documentation

• Assembly instructions

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
