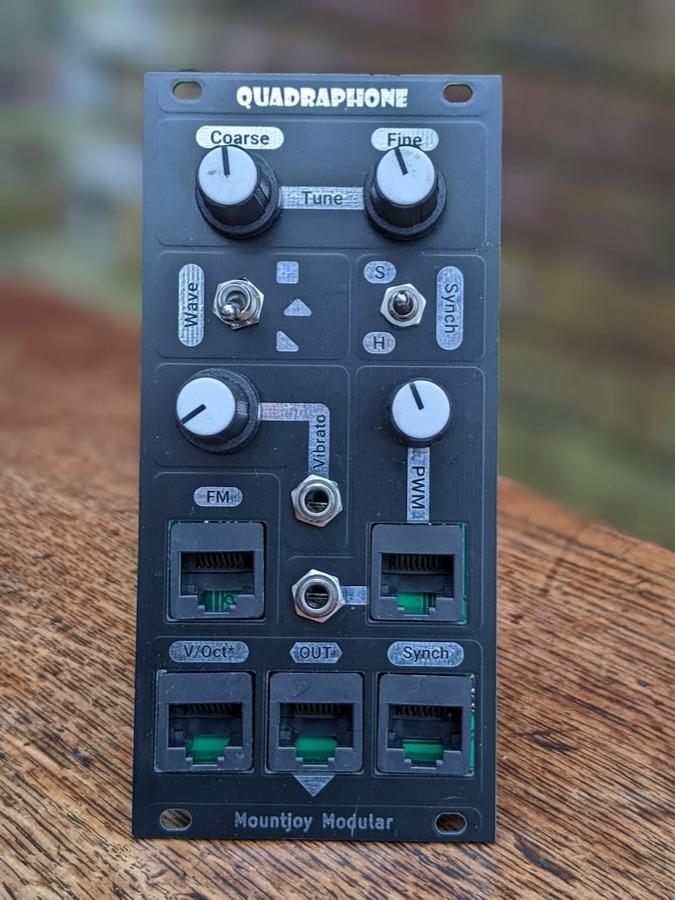

Quadraphone

Maker	Mountjoy Modular
Type	Four voice polyphonic analog VCO based on the SSI2131
Mounting	SMD
Width	12 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Square, triangle and saw switched by 74LV4066 analog switches. Pitch, sync and FM all arrive on RJ-45, with per voice trimmers for base frequency, scaling and high frequency tracking.
