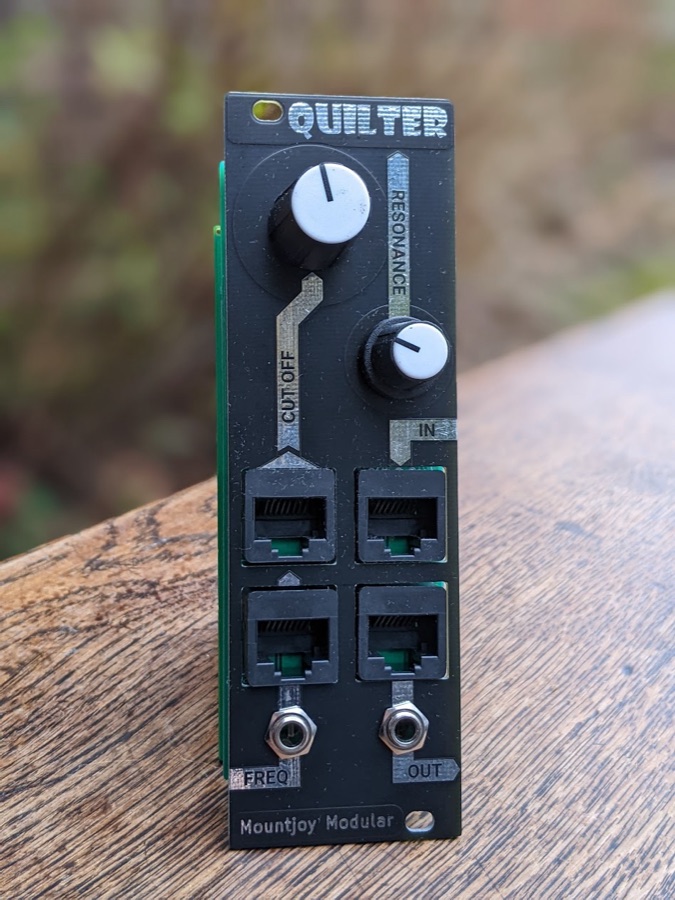

Quilter

Maker	Mountjoy Modular
Type	Four voice polyphonic four pole low pass filter based on the SSI2144
Mounting	SMD
Width	8 HP
License	Proprietary (No hardware licence published)
Difficulty	🌋 Fine-pitch SMD

Self oscillating at high resonance. Cutoff mixes a shared panel control with two per voice CV inputs on RJ-45, and each voice has trimmers for volt per octave and base frequency.
