BYOM PSU

Maker	Clacktronics
Type	Case power module making minus 12V from a 12V input
Mounting	Through-hole
Width	6 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

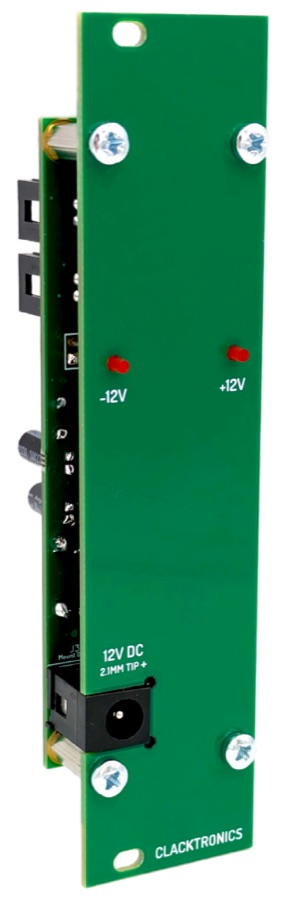

Uses a through hole MC34063 to generate the negative rail from a single 12V supply. It has its own front panel, so it mounts in the rack like a module.
