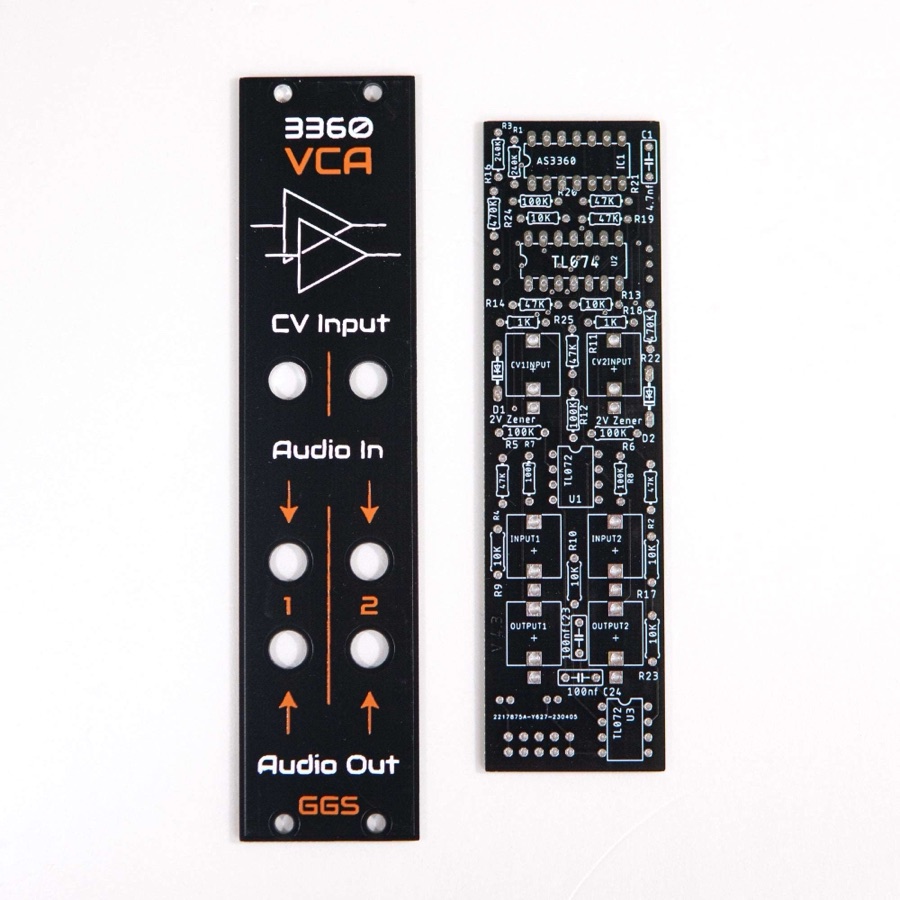

3360 Dual VCA

Maker	Guru Gara Synth
Type	Two independent VCAs on the CEM3360 or AS3360
Mounting	Through-hole
Width	6 HP
License	Proprietary (No licence published)
Difficulty	🌡️ Medium through-hole

CV input 1 normals across to channel 2, so one envelope can drive both.
