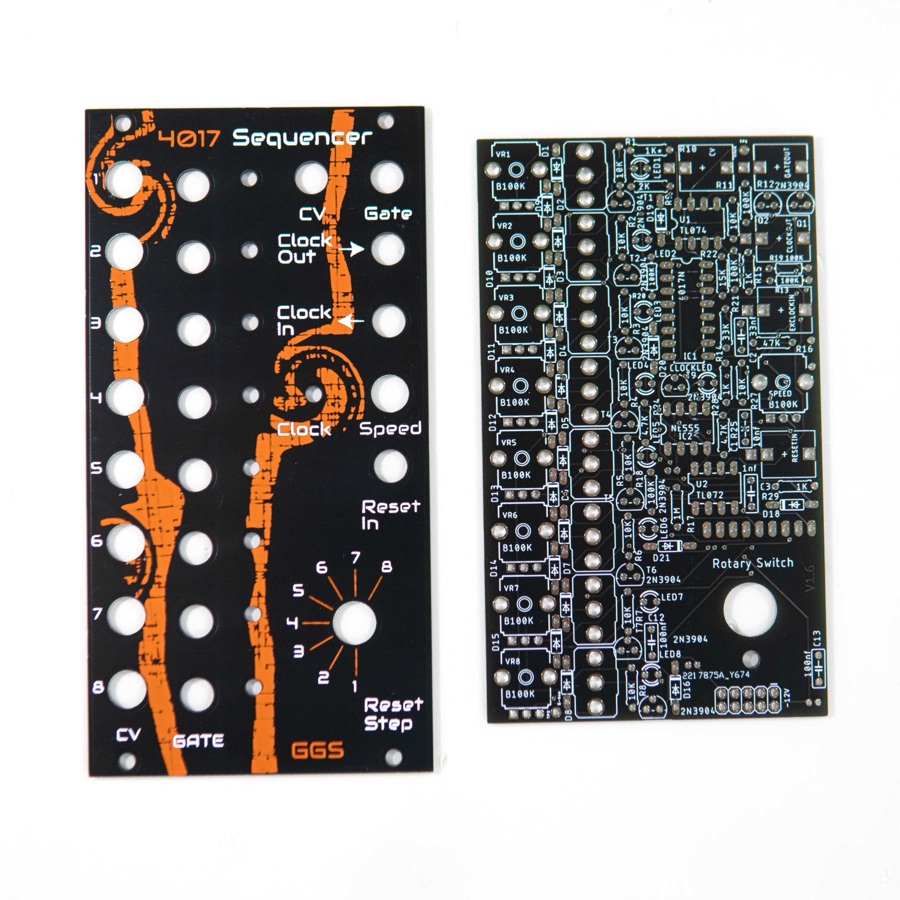

4017 Sequencer

Maker	Guru Gara Synth
Type	Eight step CV and gate sequencer on the 4017
Mounting	Through-hole
Width	13 HP
License	Proprietary (No licence published)
Difficulty	🌶️ Large through-hole

A pot and a gate switch per step, plus a rotary selector that resets to any step. Eight pots and eight switches make it one of the longer builds in the range.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Maker page
• Buy: Guru Gara Synth (PCB and panel kit)
