| Maker | Johansen Engineering |
|---|---|

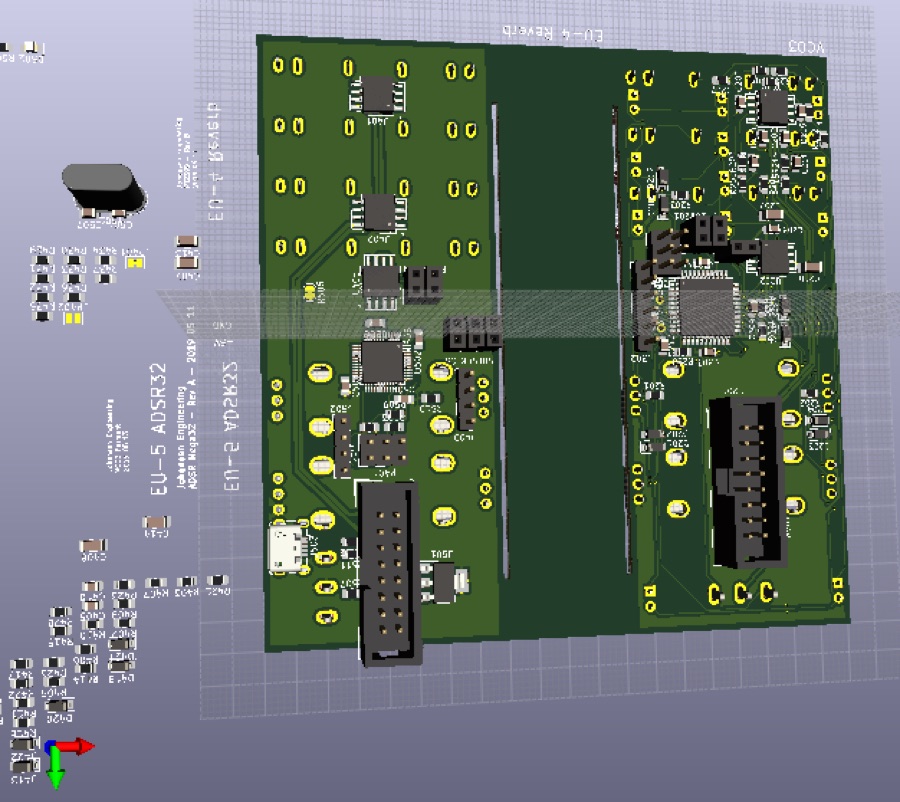

| Type | Microcontroller and MCP4822 DAC output board for DDS, LFO and envelope duty |
| Mounting | Mixed |
| Width | — |
| License | Proprietary (No licence published on this repo) |
| Difficulty | 🔥 SMD (0805) |
A general purpose digital output board rather than a single fixed function. Runs on STM32 or ATMega32A firmware and also carries a small 555 VCO. Status is preliminary mounted.
Documentation
Links
This is a third-party open-source design, listed here as a build reference. Specs are researched from public sources; check the source repo and store for the current BOM, panel, and revision before ordering parts. Corrections welcome.
