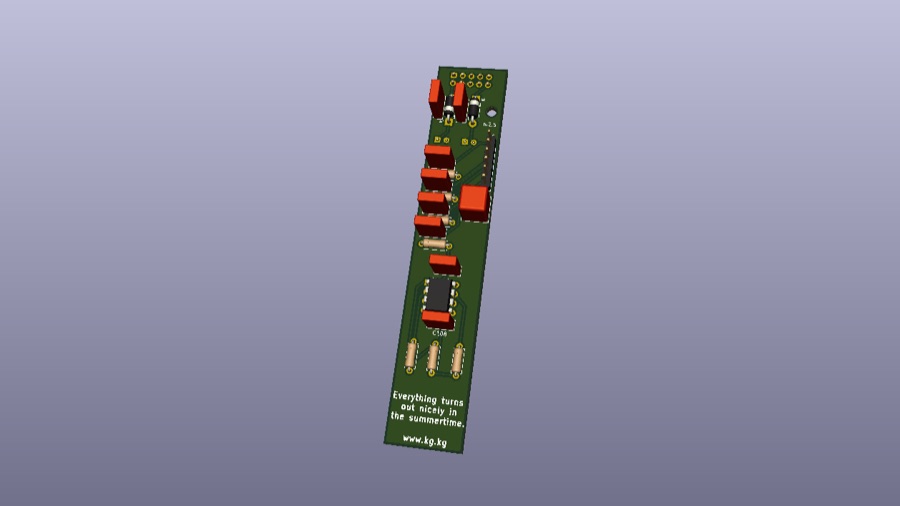

4 MIX

Maker	Cageysonics
Type	Four into one audio mixer
Mounting	Through-hole
Width	4 HP
License	Open source (CC BY-SA 3.0, stated on the project page)
Difficulty	🧊 Low-count through-hole

Small through hole build. The maker's words on the terms are "whatever, I don't mind what you do with it if it's useful".

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Maker page

More from Cageysonics

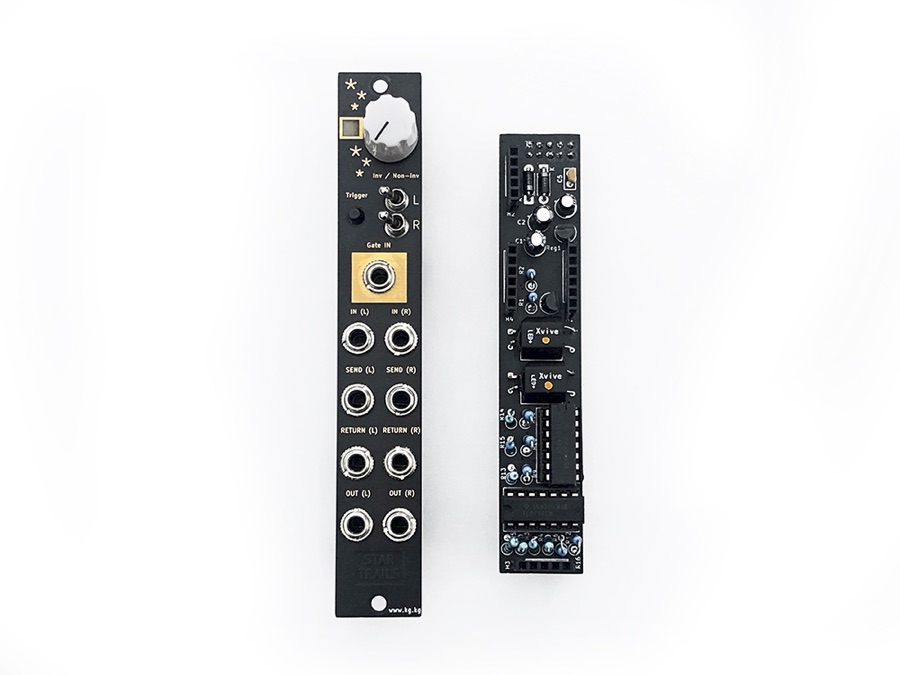

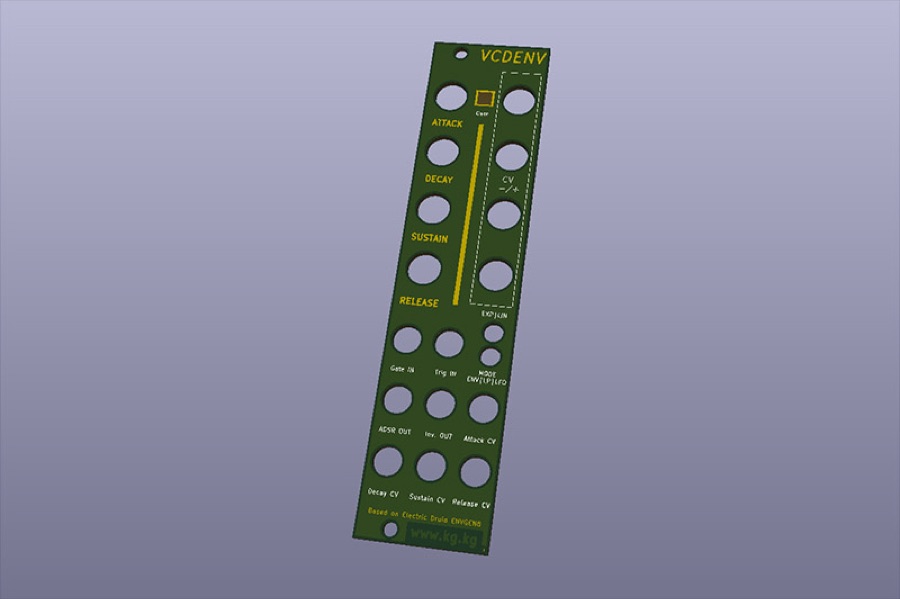

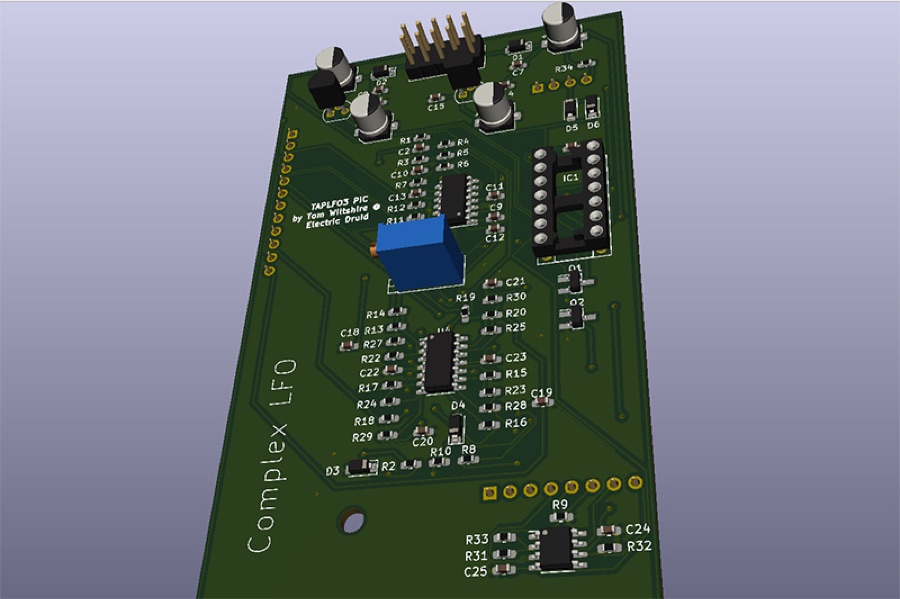

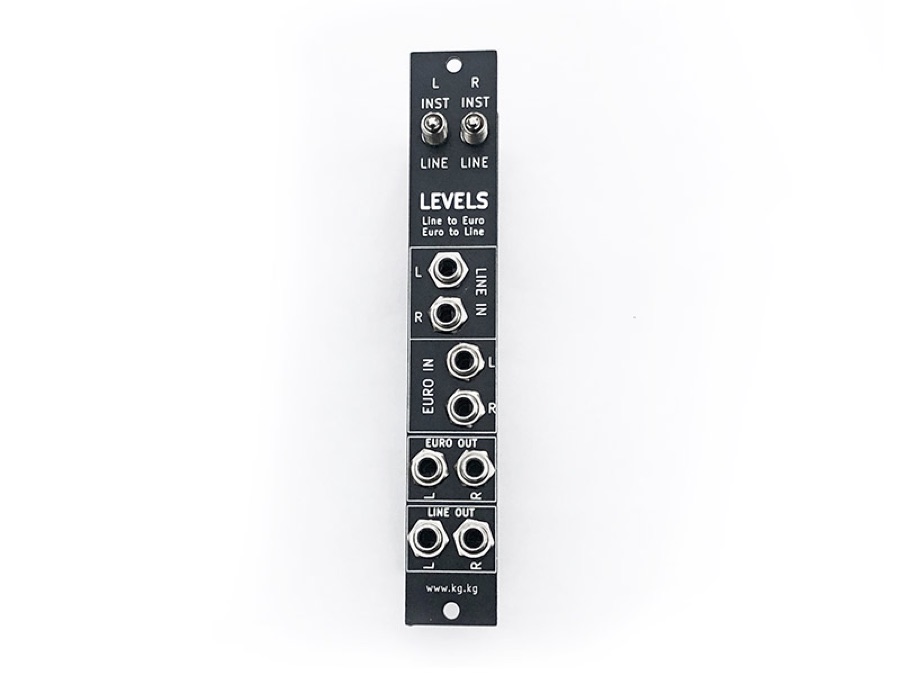

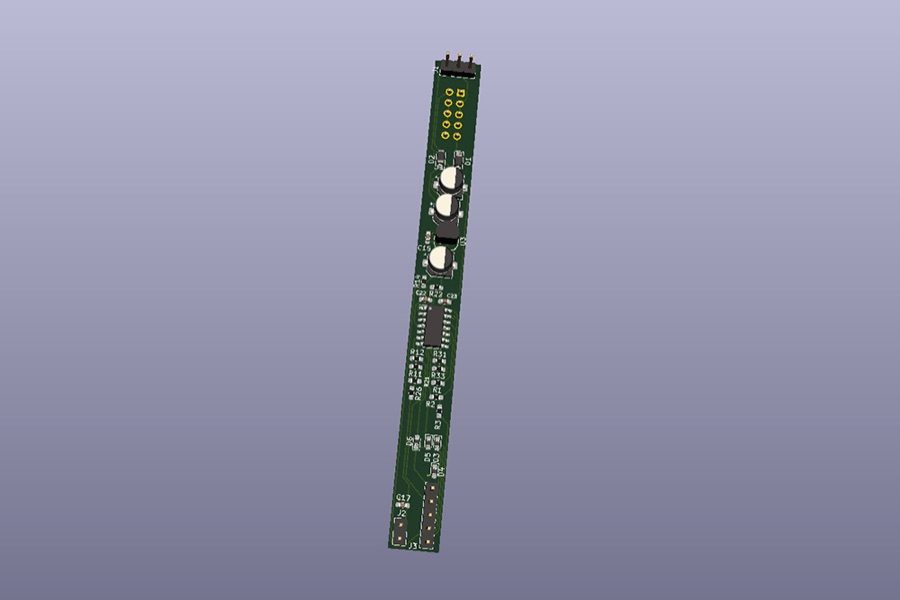

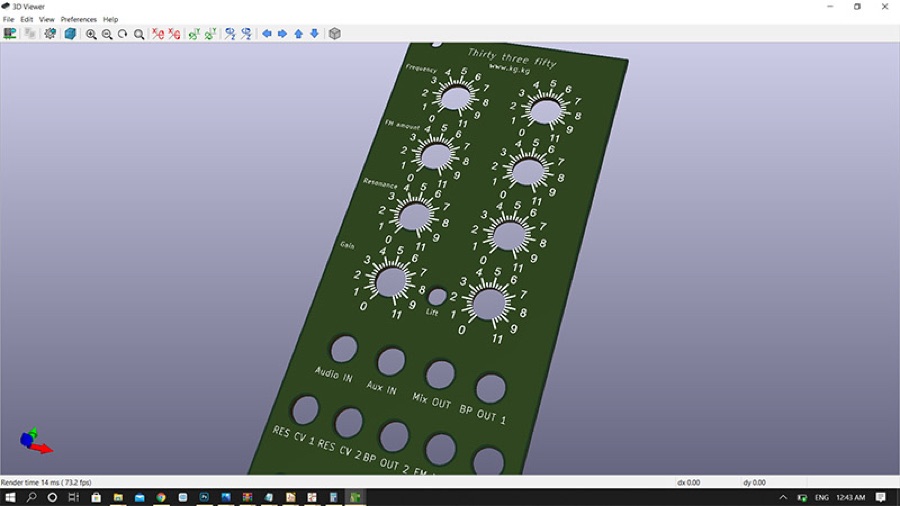

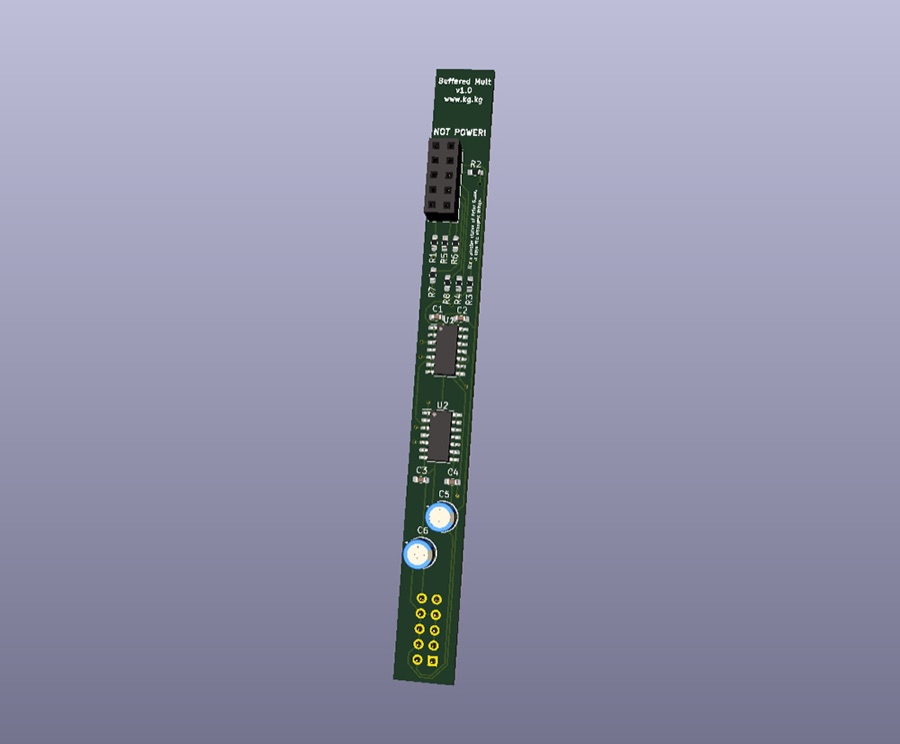

3350 Dual Resonant VCF Dual state variable filter on the AS3350 or CEM3350 VCDENV Voltage controlled ADSR with looping LFO modes VCDENV Expander 2HP expander adding TIME control and a unipolar to bipolar converter VCDLFO TAPLFO3 based voltage controlled LFO with clock in and out Star Trails Gated effects send and return loop with wet and dry blend Levels Two channel line and instrument to Eurorack level converter, both directions Unipolar Four bipolar to unipolar converters in 2HP 2HP Buffered Multiple Buffered multiple in 2HP
