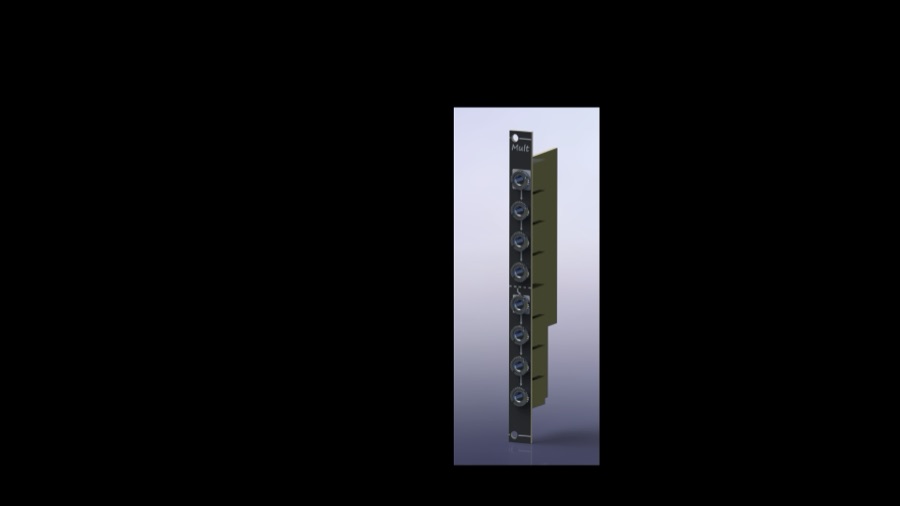

Buffered Multiple SMD

Maker	CATs Eurosynth
Type	Surface mount buffered multiple, two 1 into 3 or one 1 into 6
Mounting	SMD
Width	2 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌋 Fine-pitch SMD

Same circuit as the through hole Buffered Multiple on a 0402 board.

Documentation

• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page

More from CATs Eurosynth
