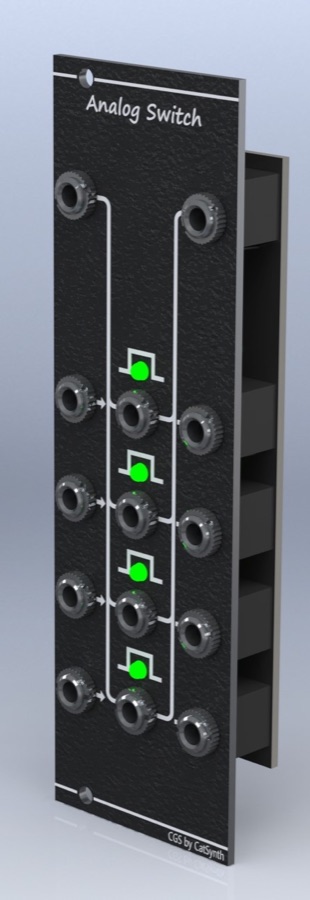

Analog Switch Matrix

Maker	CATs Eurosynth
Type	Analog switch matrix for routing signals between inputs and outputs
Mounting	SMD
Width	8 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌋 Fine-pitch SMD

Clone of Ken Stone Cat Girl Synth analog switch matrix. Mostly 0402 passives with some 1206 parts. Three boards including a control board.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
