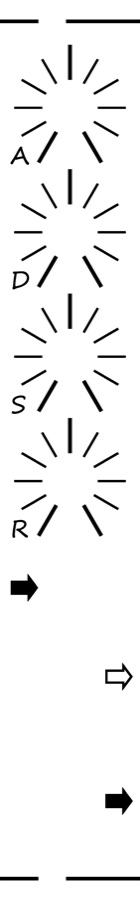

Classic ADSR

Maker	CATs Eurosynth
Type	Four stage ADSR envelope generator
Mounting	SMD
Width	4 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

0805 passives on the main board.

Documentation

• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
