Arduino VCO

Maker	CATs Eurosynth
Type	Arduino digital oscillator with additive, chord and 2 operator FM firmware
Mounting	SMD
Width	6 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌋 Fine-pitch SMD

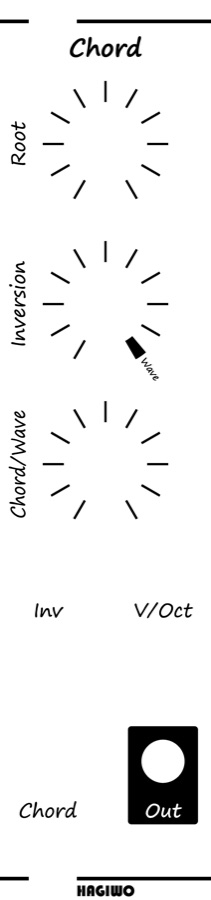

Clone of HAGIWO Additive VCO, Chord VCO and FM VCO. One main board with three panel options, one for each firmware. The output stage was amplified to Eurorack levels, and the chord firmware still runs quiet.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
