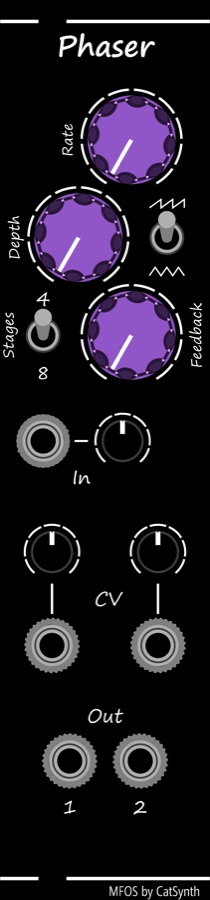

Eight Stage Phase Shifter

Maker	CATs Eurosynth
Type	Eight stage phaser with LFO sweep
Mounting	SMD
Width	6 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌋 Fine-pitch SMD

Clone of Music From Outer Space Eight Stage Phase Shifter by Ray Wilson. Redrawn in KiCad with 0402 passives, so the board is dense for its size.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
