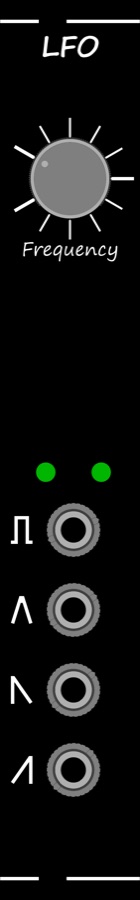

NGF-E LFO

Maker	CATs Eurosynth
Type	Next Generation Formant LFO adapted to Eurorack
Mounting	Through-hole
Width	4 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌡️ Medium through-hole

Clone of Haraldswerk NGF-E LFO. Redrawn in KiCad and converted to Eurorack levels from the original Formant design.
