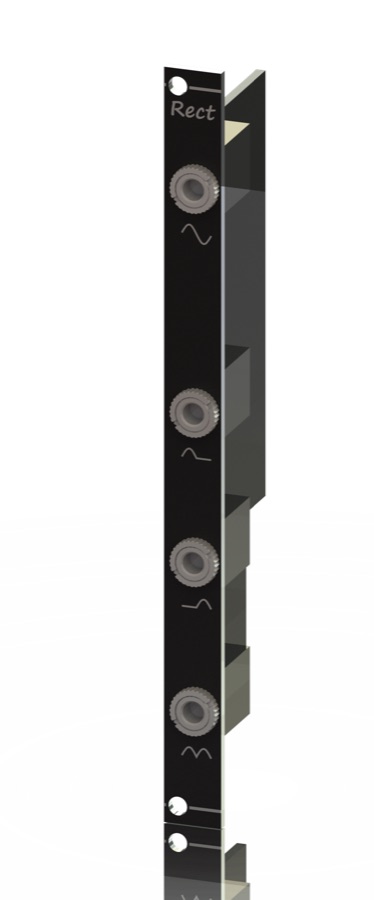

Rectifier SMD

Maker	CATs Eurosynth
Type	Surface mount full and half wave rectifier in 2HP
Mounting	SMD
Width	2 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🔥 SMD (0805)

0603 passives on the main board.

Documentation

• Bill of materials (BOM)
• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
