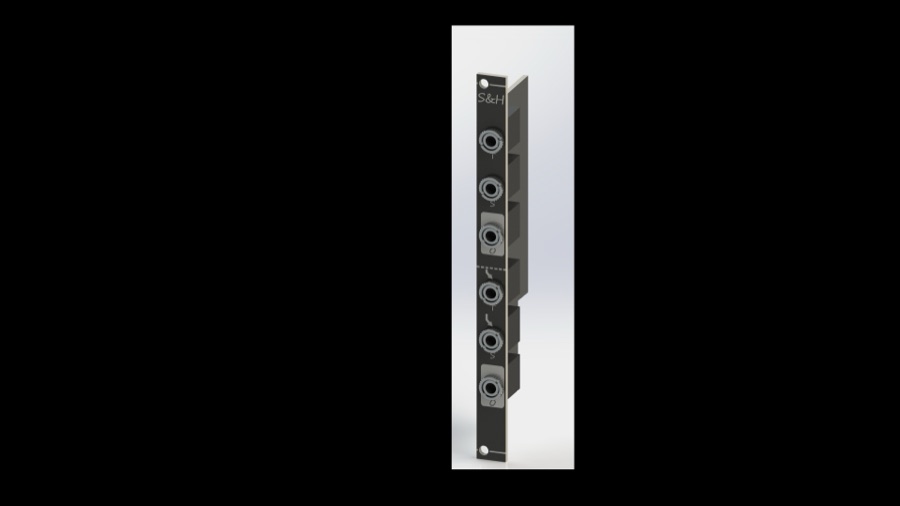

Sample&Hold SMD

Maker	CATs Eurosynth
Type	Surface mount dual sample and hold in 2HP
Mounting	SMD
Width	2 HP
License	Proprietary (Hardware CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌋 Fine-pitch SMD

Marked work in progress in the repository README. Uses 0402 passives.

Documentation

• Schematic
• Fabrication files (PCBA-ready)

Links

• Source / files on GitHub
• Maker page
