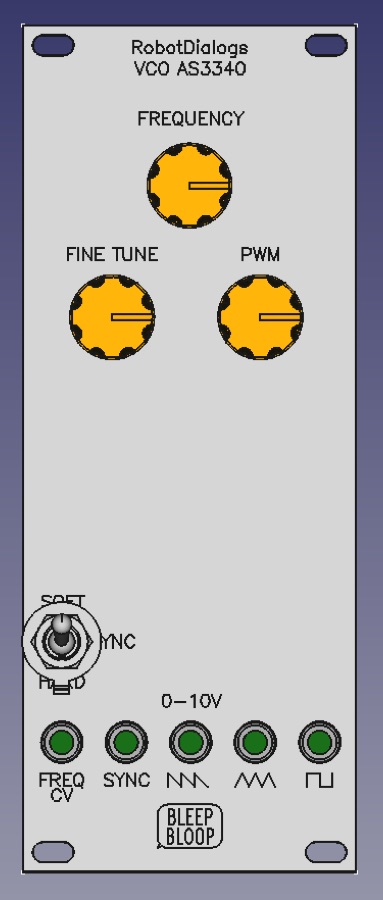

VCO AS3340

Maker	EchelonForce
Type	Voltage controlled oscillator using the AS3340
Mounting	Mixed
Width	—
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌶️ Large through-hole

Revised to v2.1, which has its own write up separate from the v1 post. Passives are 1206 SMD on hand solder pads with through hole DIP sockets for the ICs, and no gerbers are committed.

Documentation

• Assembly instructions
• Bill of materials (BOM)
• Schematic

Links

• Source / files on GitHub
• Maker page
