VCA AS3360

Maker	EchelonForce
Type	Dual VCA using the AS3360
Mounting	Mixed
Width	—
License	Proprietary (CC BY-NC-SA 4.0, noncommercial so not an open licence)
Difficulty	🌶️ Large through-hole

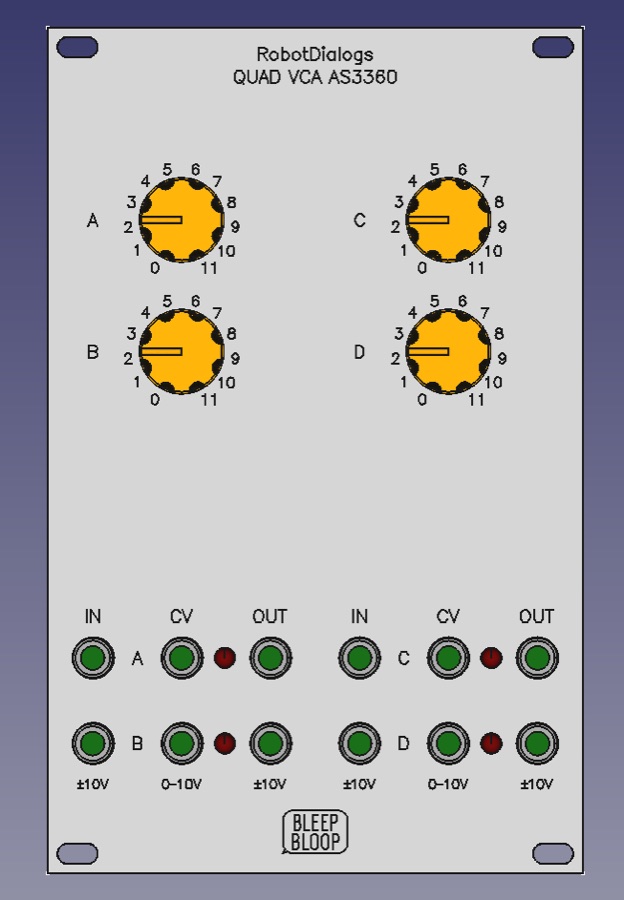

Panels for both a single and a dual layout are included. Passives are 1206 SMD on hand solder pads with through hole DIP sockets for the ICs, and no gerbers are committed.

Documentation

• Assembly instructions
• Schematic

Links

• Source / files on GitHub
• Maker page
