Eight months building modules with Claude

What changes when you build synth modules with an AI collaborator

Workbench scene of building synth modules with Claude: code, panels, and hardware ports

The Signal Function Set plugin currently ships eleven VCV Rack modules, with hardware ports for the 4ms MetaModule and the Expert Sleepers Disting NT. None of this would have happened on this timeline without an AI collaborator. I have always been a fairly technical person, but never got past some fairly basic database and script-level coding. Working with Claude Code has changed what I am able to do and the pace at which I can ship working projects. In this post I’ll cover basics of how I work and what I’ve learned along the way. The TLDR is that at almost every stage I started by doing things manually only to discover that working with Claude was more efficient and usually delivered better results.

AI remains a controversial subject for a lot of people, especially in the creative realm. I don’t presume to believe that there is a single correct way of working with AI tools, but before I dive in, I’ll share my own half-formed thinking. Most of my projects support creative work, but I have no interest in AI solving the creative problems. I treat Claude Code as part of the toolchain, and I avoid giving it the job of making creative decisions on the user’s behalf, because I’m not sure I see the point in “solving” creative problems that way.

The setup

My setup is pretty simple: MacBook Air, Claude Code, the Signal Function Set repo on disk. After a tedious few weeks of manually building, I asked Claude to create a build.sh dev script that compiles and installs into VCV Rack so I can hear a new module within seconds of finishing a line of code. The local version is technically a separate plugin (appended with -dev) which allows me to run both the published and dev version of modules at the same time. Every module has a markdown manual in docs/ that the AI can read and update. The website you’re reading is the user-facing version of those manuals. For better or worse, the docs are all written by Claude after the module specs have been completed.

Claude can read the whole repo. When I’m working on a new feature for Phase, it reads phase.cpp end to end, follows the existing state machine for VCA fade-outs, and proposes new code that fits the same conventions. Conversations carry context across days: if I ask “remember how we structured the recording finalization?” the answer comes back without me re-explaining. Some people have strong opinions about managing context in Claude, but I have worked in the same thread in the Mac app since the beginning and haven’t had any problems.

Design before code

I don’t write code or design panels before starting a new module. My initial approach with Drift was to start with a fully rendered panel, designed by hand. I like design, but when the concept is evolving, manually catching up is a waste of time. My current approach is to just work with Claude from the get go. I usually have a very clear vision of what I want to build, and the first step is explaining it clearly.

In the case of the Sequencer System modules, I worked out the way I wanted them to interact over a few weeks in my mind before starting to work on them. I brought the full set of ideas to the conversation at once and we refined each module (Meter → Beat → Note) one at a time. In each case the design conversation happened without a final set of jacks, knobs or screen elements.

I went back and forth with Claude on what each module should do and when we were ready to build, it took a stab at the layout. The initial layouts have been typically bad, but they get a working module up quickly, which matters more. Having the module in hand helps me realize where I might have been inarticulate or when my ideas simply weren’t fun to play. None of my modules have been “one shots”. It usually takes a number of revisions to get things feeling right, but in most cases I have a working module at the end of the first session.

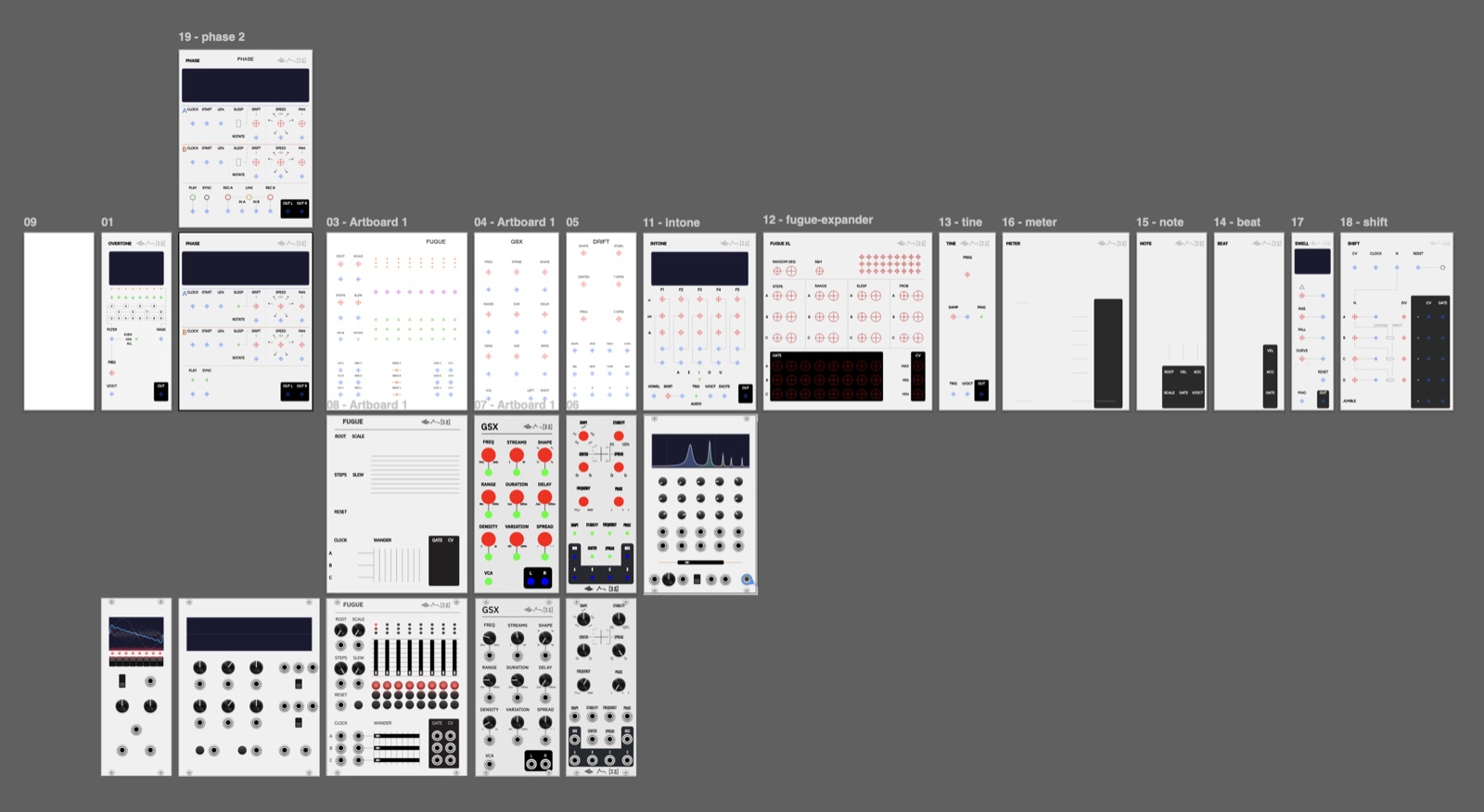

Adobe Illustrator template for VCV Rack panel design, with an HP-scaled grid and placeholder reticles for knobs, jacks, and buttons

Once I’m happy with the module’s behavior, it is time to refine the design. For this, I work in either Illustrator or Figma. Rather than start from scratch, I ask Claude to update the panel SVG with precise reticles or shapes for each UI element. VCV Rack layers these in based upon coordinates specified in the file. Claude can make these as big as you want, and I typically ask for them to be as close to the real UI element size as possible in order to more effectively space out the panel text/design.

VCV Rack modules are specified in mm to make the translation from/to real Eurorack simple, but this is kind of a pain because it requires you to work in HP-scaled grids. I have built a fairly basic template in Illustrator to handle this and it works fine. I might build a panel designer at some point to replace this.

Once I have updated the design, I share an updated panel SVG and ask it to update the element coordinates. As long as I tell it what each reticle represents, it places the elements accurately. I attempted this manually with Drift and it was a nightmare.

Where Claude is unambiguously good

When the design is settled, Claude is good at implementing it within the conventions of the existing codebase. Adding a new parameter to a VCV Rack module requires touching the enum, the constructor’s configParam() call, the process() function, the JSON persistence in dataToJson() and dataFromJson(), the widget panel layout, and sometimes the context menu and the right-click defaults. By hand that is twenty minutes of careful typing. Claude makes all of those edits in one pass and follows the existing style.

It’s similarly good at state machines that need to be correct on the first try. The Phase recording state machine moves between IDLE, ARMING, ACTIVE, and FINISHING states, with a 1 ms anti-click envelope at the boundaries and a deferred-finalization handoff from the audio thread to the GUI thread. The first implementation worked, and the bugs that turned up later were spec gaps, not state-machine errors.

Where Claude struggles

Physical panel layout is harder than it sounds. Getting the record buttons positioned right on the Phase panel took five iterations and several screenshots, because phrases like “above the IN jack” and “centered between the two groups” mean different things to the AI than they do to me. Manual panel fix-up is where I spend the most time. This is OK because I enjoy the work.

Claude can get confused. More than once it has lost track of which module we’re working on and brought features from an unrelated module into the current one. Once the result was interesting, but usually it was just annoying. For some reason Claude also likes to invent new VCV Rack tags, and a tag that is not on the official list gets the plugin rejected on submission, so double check them.

Debugging still needs me. When a user reported that Phase crashed while pressing the record button with a low gate signal, Claude was good at hypothesizing: it walked the state machine, identified a plausible race in the deferred finalization step, and proposed defensive guards. Finding the real root cause needed log files and a reproduction. Claude narrows the search space well, but it does not replace understanding what your code does.

The audio thread

Real-time audio in VCV Rack is forgiving, but Claude won’t navigate the actual gotchas by default. The strict rules you’d flag in a JUCE plugin (atomics for any shared state, no allocations ever) don’t really apply: VCV’s threading model lets plain float fields cross the audio/GUI boundary safely on every modern CPU, and an occasional allocation outside the inner loop is fine.

The pitfalls Claude does miss without prompting are about CPU load and audible clicks rather than memory safety. Rebuilding a lookup table on every knob change runs at audio rate if you’re not careful, which is 48,000× per second. Anti-click envelopes around every discontinuity (loop wraps, hard syncs, sample-jump triggers) need 1 ms fades or you get pops. State that the GUI iterates over while the audio thread mutates needs proper handoff, even if individual field reads don’t. Once I name these constraints, Claude works inside them, so the useful thing to give it is the list of real risks in VCV Rack rather than the general rules for real-time audio.

Porting becomes a different kind of work

Once a module exists for VCV Rack, the work of porting it to another platform stops being primary engineering and becomes a translation task. The 4ms MetaModule port of most of the Signal Function Set modules happened in a matter of days. Most of the work was optimizing the code to work within the targeted CPU usage for MetaModule plugins.

The Disting NT port of Fugue, into a brand-new module called fugueNT that also folds in the per-voice extras from the Fugue X expander, took a couple of sessions. The AI read the Disting NT SDK, identified the API mappings, and produced a port that compiled and ran.

The question I spend my time on is then whether the underlying design is good enough to put in three places, rather than how to implement it on each platform. Fugue is now live on all three (with VST and AUv3 ports next on the list), and I’m pleased about that.

Documentation

Documentation is now cheap to produce, so every module ships with a full set of it. Every module has a panel SVG, a C++ source file, an in-repo manual, a public website page, MetaModule metadata, and for some, a Disting NT port. Maintaining all of that alone used to be unreasonable, and with Claude I do it for every module. The website you are reading is essentially the user manual, and it stays in sync with the code because keeping it in sync is no longer expensive.

Closing

Before I worked with Claude, building tools on my own meant keeping the scope small. The scope can be wider now, but the editorial work has grown with it: deciding what is worth shipping and what to leave out. The question I come back to most is whether a module should exist at all, rather than whether I can implement it, and I answer that one myself rather than asking Claude.

If you’re interested in learning more, hit me up on the Discord. I’m happy to share more about what is working for me and to hear what is working for other builders.
