SLIDE XP

Per-string output expander for Slide

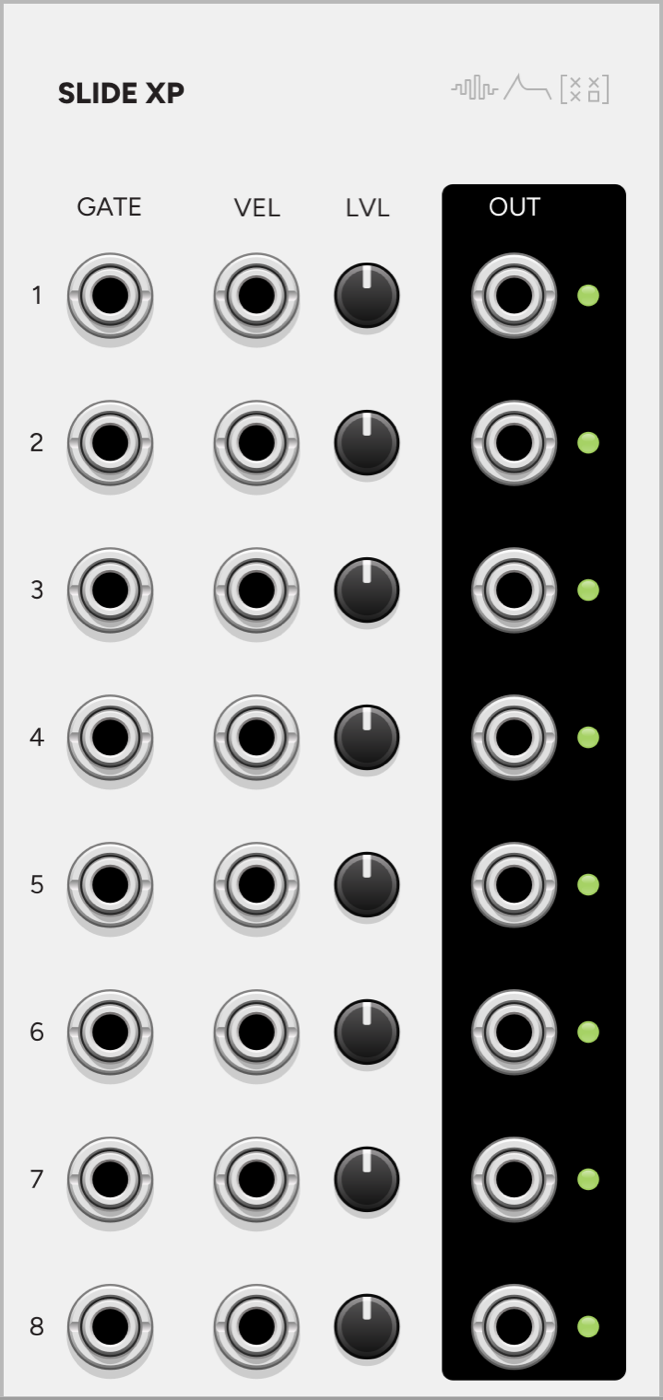

The SLIDE XP module panel in VCV Rack.

SLIDE XP is an expander for Slide. Place it to the right of Slide and each of the eight strings gets its own jack: an output, a gate in, a velocity in, and a level trimpot. SLIDE XP is 12 HP.

Slide sends its strings out on a polyphonic cable, which suits a patch that treats the eight channels as one polyphonic voice. When you want the eight strings to go to eight different places, such as separate amps, a filter on each string, or a mixer with its own pan, a polyphonic cable has to be split back out with an extra module and a row of cables. SLIDE XP puts those jacks next to the instrument instead.

What it changes

  • Each gate plays a particular string. On Slide’s own poly GATE input, channel N is the Nth note, and Slide’s bar solver assigns it to a string, as on a real steel, where the bar position determines which string sounds a given pitch. On SLIDE XP, the gate jack labelled 3 plays string 3.
  • The velocity trimpots set the picking balance. With nothing patched into a string’s velocity input, its trimpot sets that string’s velocity, so the eight trimpots together set the balance between strings, for example with quieter bass strings or a louder inner voice. When a velocity input is patched, the same trimpot scales the incoming voltage.

Inputs and outputs

  • Inputs: 8 x gate, 8 x velocity (0-10V).
  • Controls: 8 x velocity / attenuator trimpot.
  • Outputs: 8 x string audio, each with an activity LED.
