Crystal

3D crystal echo chamber for VCV Rack

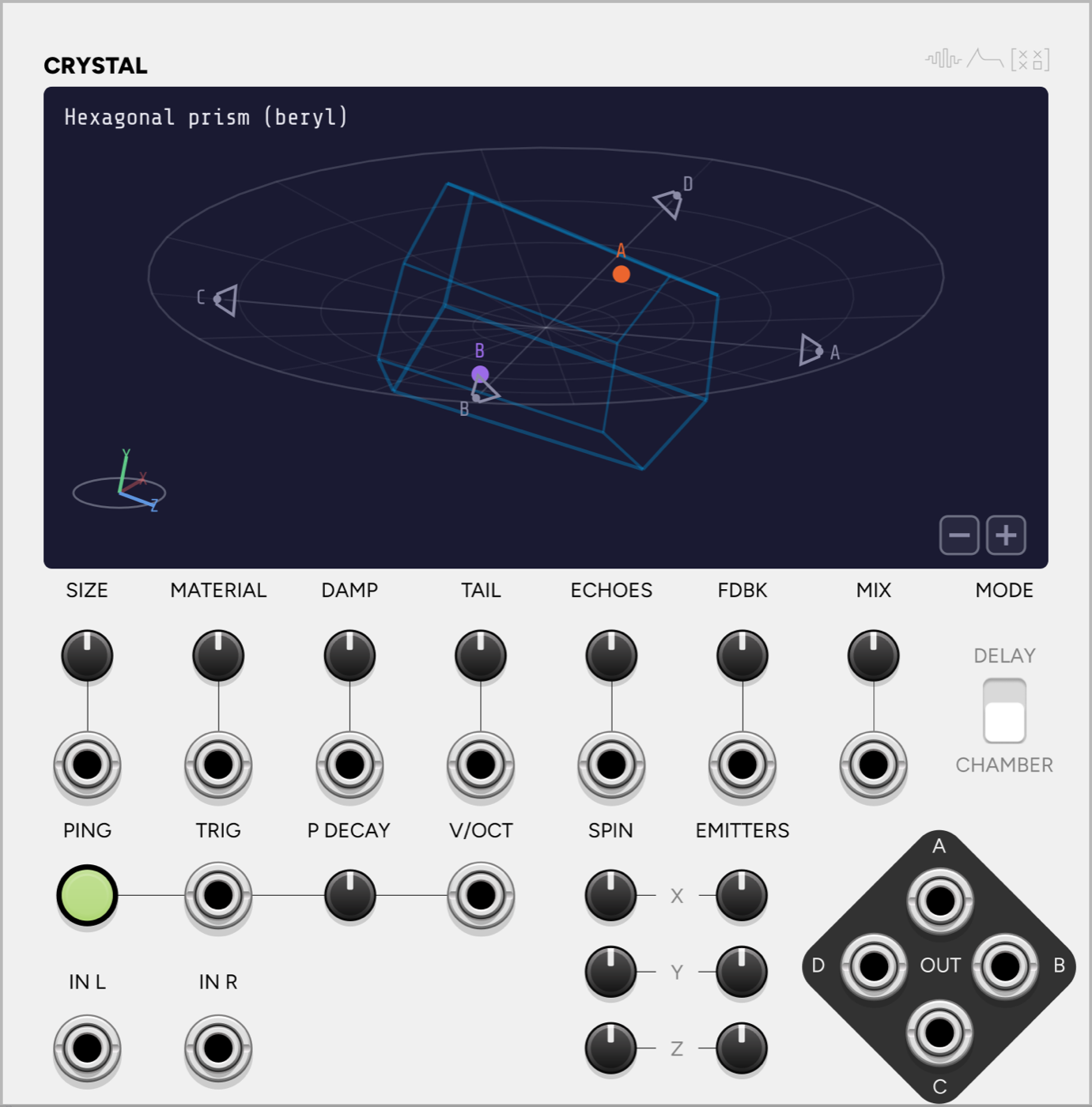

The Crystal module panel in VCV Rack.

Crystal is a 3D echo chamber shaped like a real crystal. It takes a stereo input and has quad outputs, which carry the sound at four listeners placed inside the shape. The module is 28 HP.

The sixteen crystal habits follow real crystal symmetries (cube, octahedron, dodecahedron, the sphalerite tetrahedron, pyrite, quartz, and the low-symmetry systems) and are ordered from simple to complex. The last four are clusters, several whole crystals grown together, so a ray can be trapped in one or wander between them.

Video

This video shows a guitar patch built with Loom, which makes a good dry source for Crystal.

How it works

The room is traced by letting rays loose inside the shape. Every wall strike sheds an echo toward each of the four interior listeners, and that set of arrivals is the quad output. Tracing runs on a worker thread and the audio thread adopts the new taps with a crossfade, so you can change the shape while it plays.

  • CHAMBER keeps real acoustic timing. DELAY keeps the geometry’s arrival ratios but stretches them to musical times, with SIZE becoming the delay time.
  • A larger habit rings longer, with the ring time set by the crystal’s volume and surface area.
  • There are two emitters, each steered with X/Y velocity CV, so the point the sound comes from moves smoothly rather than jumping.
  • Rotating the display changes only the view, not the sound.

Inputs and outputs

  • Controls: Size, Damp, Material (habit), Tail, Mix, Echoes, Feedback, Decay, Ping, Mode (chamber / delay), the two emitters’ aim and motion, and the view.
  • Inputs: Audio, Audio B, Ping, V/OCT, Size, Damp, Material, Tail, Mix, Echoes, Feedback, and X/Y velocity per emitter.
  • Outputs: Quad A / B / C / D.

Patch idea

A room you can play. Nothing patched, MIX fully wet, MODE on chamber. Ping it and pick a habit to hear the bare resonance of each shape. Then patch a voice into Audio and automate an emitter’s X/Y velocity so the source drifts through the crystal while you take the four outputs into a quad or stereo mix.
